Not sure if this in the correct category, I’ve had my Avata 2 a couple on months and I appreciate it’s meant for mainly low level and fast. I’ve experienced a couple of times when flying higher the Avata2 is affected by crosswind and flies slanted. I have calbrated everyting and this only happens a bit higher up +50m with a moderate wind. In the same conditions my Mini 3 Pro flies level and straight. Any ideas?
Guess it just about counts as FPV lol.
Yeah the avatas are quite under powered really. They great machines, but doesn’t take a lot for them to be tilted. Is it affecting your video a lot? I’ve flown the og avata a lot in a lot higher winds (mainly for speeding along) and they cope well, just don’t do sudden jerky moves really, they have a habit of losing control. If not in manual mode wouldn’t worry too much
1 Like
And the mini 3 hasn’t got big plasitc rings around the props acting as wind catchers
1 Like
It won’t be, its got a 3 axis gimbal so the camera will appear straight and stable
If you use the compass it will show you the tilt angle of the Mini 3
The Avata only has a 1 axis gimbal
1 Like
was also going to add that the Mini 3 pro will not be flat and level due to its gimbal - its crazy when you see one in flight how much they move around in the wind but the gimbal does all the work to keep that video level.
I have seen my Avata do the same thing in the sky - behaving like the mini 3 but because the gimble only goes up and down it too is on the slant.
Your best bet is to use something like Gyro Flow or during your edit you can rotate the footage with a bit of counter rotation to level things out.
But I would say this is quite normal with the Avata / Avata 2 and generally any drone that has a 2 access ( up / down ) style of gimbal
1 Like
Thanks both, I can live with that but my biggest problem is that it doesn’t fly straight in a crosswind and my videos end up in a weaving action. It flies straight in low wind.
Head tracking will help that
Bit gimmicky but effective in your scenario
As a newbie and Mini 2 SE flyer, I am in awe of the effectiveness of the 3-axis gimbal, an amazing piece of kit that has to react instantaneously to correct any buffetting by gusts of wind. I flew it at 300’ last week on a blustery day, videoing, and the app warned me that I should land immedieately because of high winds; I brought it down to 100’ at which point things settled down a bit, but you could see it being knocked around and correcting on the GPS. The app screen image, and the video, were absolutely rock steady throughout, even at the higher altitude. Now, this is what DJI say their drone will do and it would be perfecly reasonable to take it for granted, but I just can’t. It’s amazing, and as I said, I’m awe-struck by it.
I’m pretty awe-struck by the drone’s performance overall as well; the GPS is superb and it does exactly what it says on the tin, effectively and easily; kudos DJI! There are many products that don’t…
1 Like
You can use horizon lock when shooting and that stablizes the footage pretty well. Not suitable for all shots though
Hi, this is quite common on all ducted drones or drones with guards. These are known as pusher drones as the propeller force is reversed to a normal drone and this also affects stability and performance in high wind situations. Works brilliantly for what it is designed for and that is cinematic shots just not high level shots. Pushers are designed for tight or indoor filming. Pushing down reduces the effect of air being bounced of walls and alike so it gives a more stable and steady operation.
Different beast to the Avatas
Not sure this is correct as the OG Avata is a pusher and the Avata 2 is a puller - and we’re talking Avata 2 here.
Not sure this is correct either as the airflow must be downwards to create lift which is not related to pusher or puller drones design.
3 Likes
the difference between the 2 is the way the motors are mounted, that’s all. The props will be mounted in the same orientation on both. Pushers have the motors mounted upside-down on top of the props. pullers have the props mounted on top of the motor. But in both cases, the props will remain the same way up.
I think the original issue is caused by the avata not having a 3 axis gimbal as stated by @SparkyFPV a few posts back
5 Likes
Hi my main issue is not gimbal related it’s how the drone is susceptible to crosswind and consequently difficult to maintain a heading in windy conditions.
There should be a specification in the manual showing what sort of wind the drone can fly in, either in kph or Beaufort Force numbers. The drone should be able to be flown normally as long as it is within that spec, but don’t forget that wind speed will be higher the more altitude you have. For my Mini 2 SE it is 38kph/Beaufort 5, for example, and I suspect may be lower for an Avata, which has more surface for the wind to bear on, but this depends on how powerful the motors are and the design of the propellers as well. It’s to do with the amount of thrust the drone can produce to counter the action of the wind.
I’m sure DJI will be happy to provide the information if you contact them. Then it is simply a matter of not flying in wind conditions that the drone is not specified to handle, or landing/flying at a lower altitude if it becomes a problem. On my drone, I am prompted by a warning on the app screen, backed up by a voice message.
If it is a bit breezy, good practice is to fly into the wind so that the return journey has the wind behind the direction the drone is moving. This will give you an extra safety margin for returning home when the batteries may be depleted.
RTH against the wind may be a bit fraught, as TTBOMK the drone & battery calculate the remaining battery reserve and distance to base to initiate the automated low batter RTH sequence. Wind resistance is not taken into account, and the drone may struggle to get home, possibly going down in an unsuitable locaton or over water. A drone capable of 38kph cannot make headway against a 39kph wind, nor can it maintain a course at an angle to the wind.

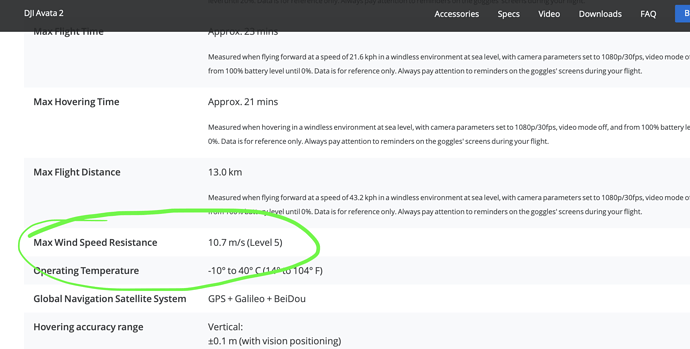

If it helps, all DJI drones list their wind speed resistance on the Specs section of the relevant product page on their web site:
1 Like
Its the same
1 Like
This gets me back to my original question if both the Mini 3 Pro and the Avata 2 have the same wind resistance 10.7 m/s the Avata 2 is more susceptible to cross wind. I think it is as the Avata 2 cannot maintain a heading in similar wind conditions than the Mini 3 Pro. Actually at a lower wind strength than the Max quoted. I’ve come to the conclusion that it’s the shape and design of the Avata 2 is the major factor. I used to fly light aircraft years ago and the Chipmunk being a tailwheel was far more affected by crosswind than the Beagle Pup, a nosewheel design.
