Beginner wing build

Racing Quads, Self-builds & FPV
21

It will :grinning: We will make sure it does :+1:

1 Like
22

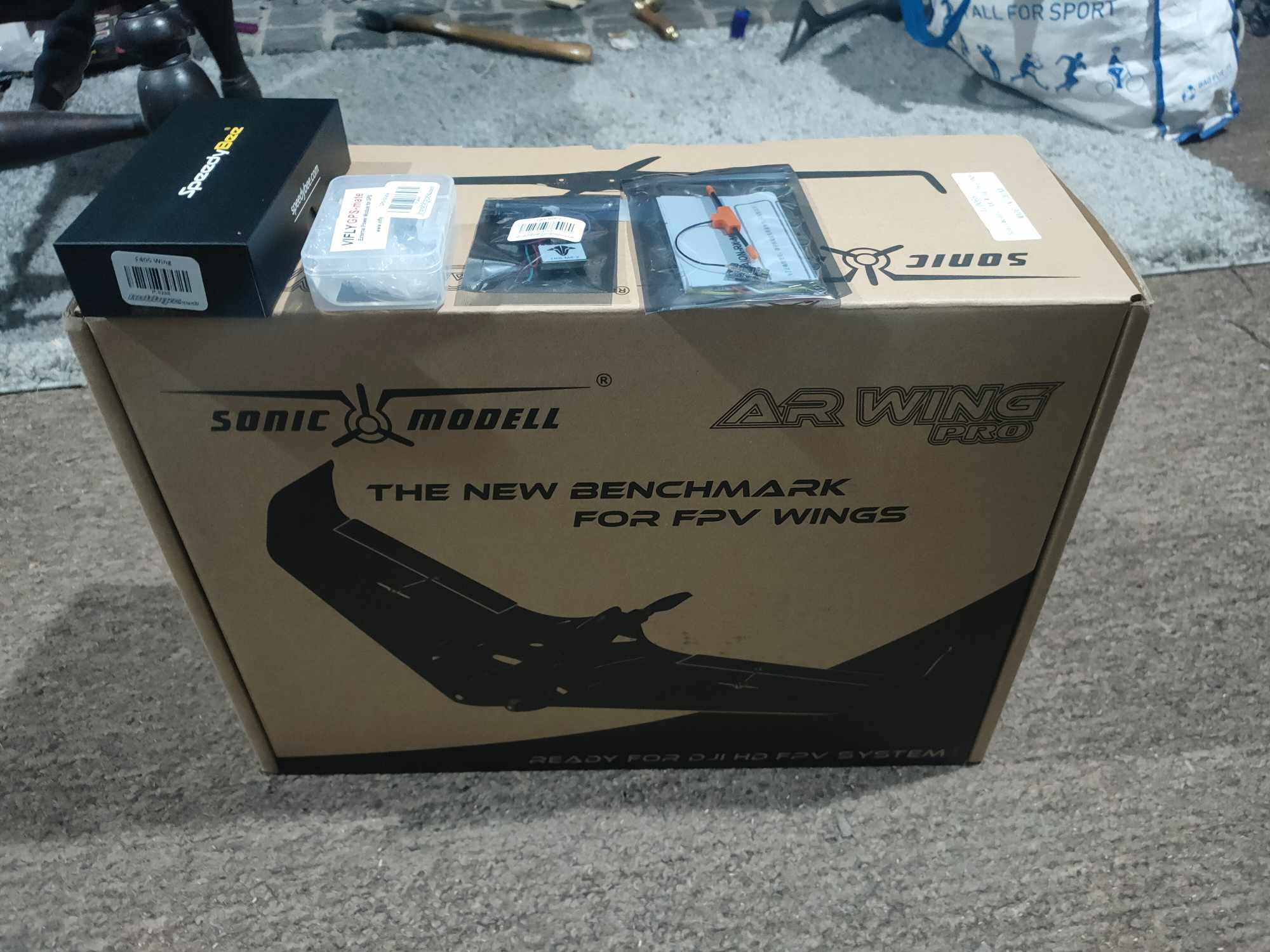

eric toys
eric toys2000Ɨ1500 181 KB

3 Likes
23

I owe you for all your time and help looking for my AR Wing PRO so It will definitely fly :+1:t2:

2 Likes
24

Looking at your pic, youā€™ve pretty much got all the essentials to make it fly. :+1:t2: Only really missing the VTX for the FPV side of it :+1:t2:

25

All you guys have been great. gunja99 has been very supportive and helpful with my questions.

3 Likes
26

Youā€™re in good hands here :ok_hand:t2: As @SparkyFPV said weā€™ll get you in the air :+1:t2:

2 Likes
27

Post the build pics here and the questions, this will be the official Eric Builds and flys his wing thread

3 Likes
28

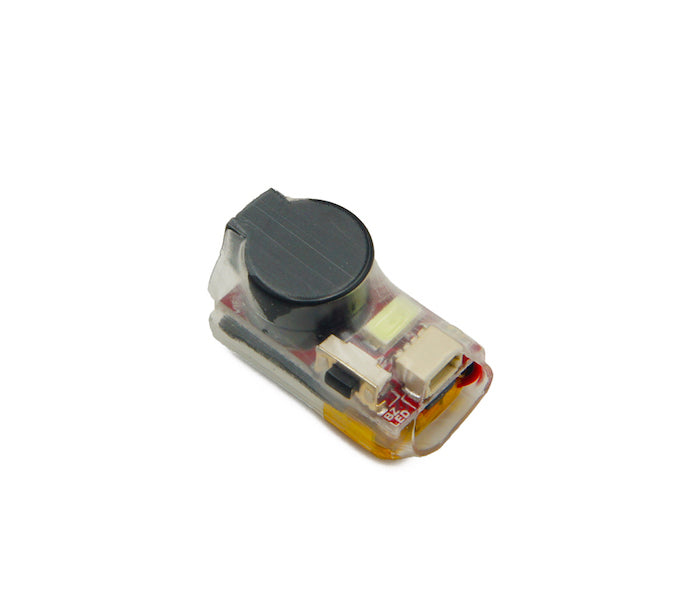

Top Tip for your Build:

pick one of these up :+1:t2: Believe me, I wish I had :man_facepalming:t2:

29

Well the ironic part of it is I have 4 of them in my parts box but I didnā€™t fit one to the wing because I figured itā€™s huge I wonā€™t lose that! Well how wrong was I :rofl:

1 Like
30

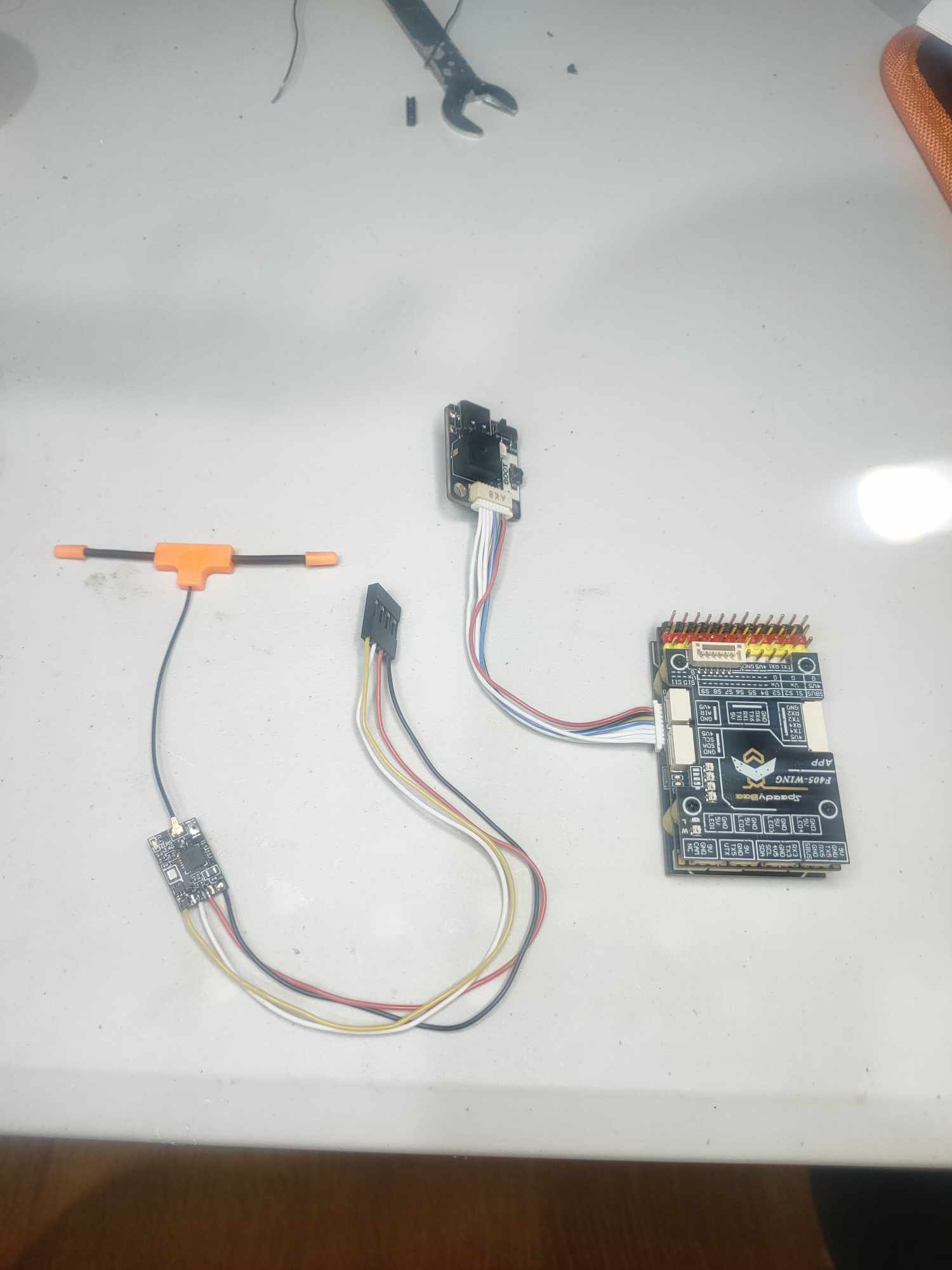

i got one just need to work out how to fit .Today i had a go at soldering the pins to the board and put the lead on for the receiver.

eric toys 2
eric toys 21500Ɨ2000 80.3 KB

2 Likes
31

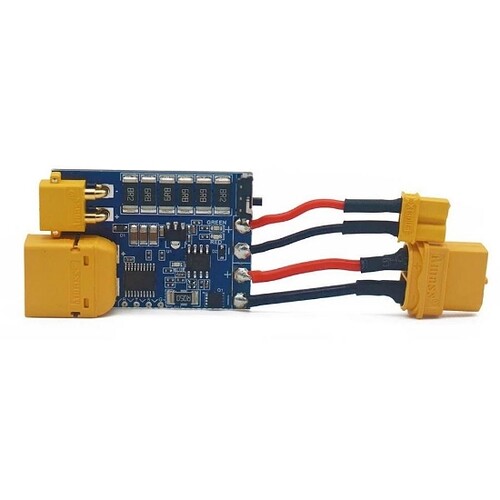

Another worthy investment for ya:

Ā£8 odd quid is well worth it to stop you frying your electronics :ok_hand:t2:

32

Iā€™m not sponsored by ViFLY by the way they just make good products :rofl:

2 Likes
33

I am build a wing with one but @RestlessZombi has already done it.

1 Like
34

I think it will be the Eric and Nicola build, I built the board this afternoon for him :joy:

35

Looks like a decent job at the soldering, i got red and yellow rows mixed on mine but it doesnā€™t matter.

Mineā€™s a Heewing T1 Pro, SpeedBee 405Wing and O3 unit.

Thereā€™s a 6 wire cable that comes with the Flight Controller for fitting the O3 (itā€™s the longest one) much longer then the one that comes with the O3 unit. I cut the yellow SBUS cable as you donā€™t need that and less wires the better.

O3 can get hot without airflow so try and account for that somehow. O3 in quads is open but the body of a wing is different. I bought some little Raspberry Pi heatsinks to stick to it and have air flow over them (O3 air unit is 30 by 30mm, so something around there is good, mines uses 4x15mm ones)

Edit: Iā€™ve just seen you can attach it to the outside, good airflow, feels risky though :person_shrugging:

There is a buzzer on the FC but it relies on the battery staying connected, as Deano said a separate buzzer is a good idea.

The FC is a good budget choice, setting up in INav was pretty painless, beyond a few settings its mostly personal preference for things.

1 Like
36

@RestlessZombi The AR Wing PRO has wooden floored compartments either side of the main hatch both of these compartments are in direct air flow by means of vent and exhaust :+1:t2: perfect for cooling.

1 Like
37

Careful with viflys inside wings and wings. I ā€œthinkā€ they have a light sensor which means it wonā€™t beep at nightā€¦ itā€™ll just flashā€¦ Which on a quad is ok (unless night flying) but on a wing inside the compartmentsā€¦ I think this is the case but would need more testing/checking.

Iā€™ve bought cheaper alternatives from Amazon which work fine.

1 Like
38

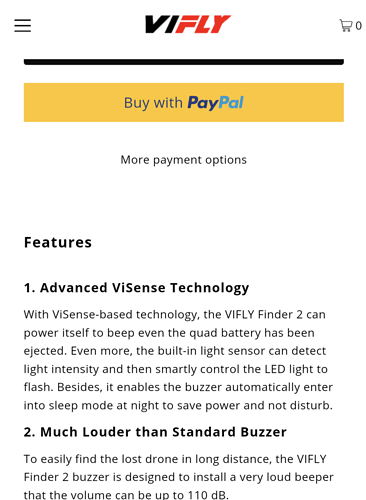

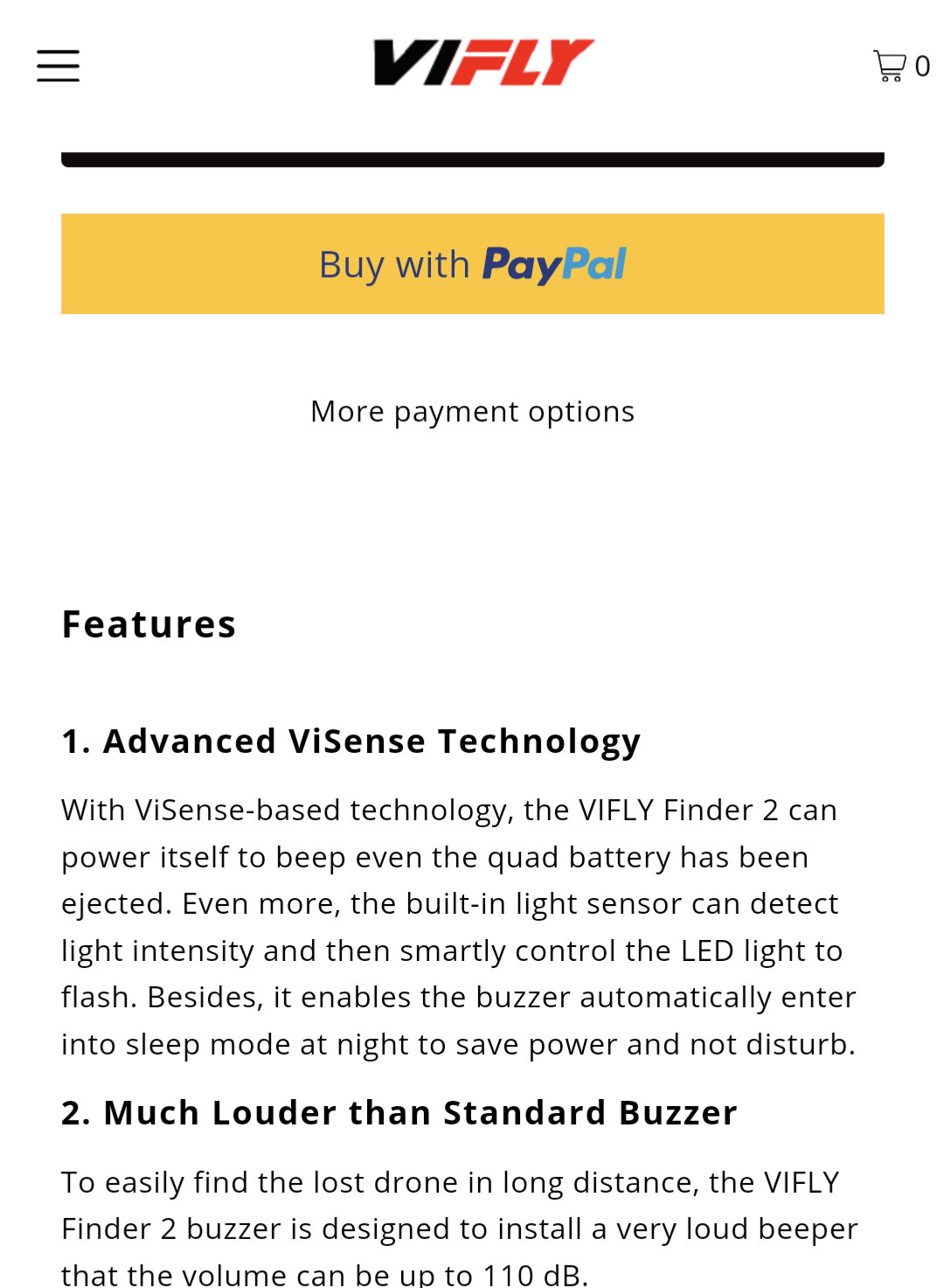

From their site (thought better backup my comments lol)

Screenshot_20240121-140832
Screenshot_20240121-1408321080Ɨ1473 165 KB

Possibly why I thought some were duff in the past

ā€œSleep mode at nightā€ā€¦ Ummm no thanks

1 Like
39

That is a very good point @GunjaFPV maybe the ViFLY mini might be a better option?

Still the same 100db just smaller with no sleep mode?

40

Yep, but the flashy light can be so useful when searching an area with another quad to find the downed plane

1 Like
