any one used one of these yet?
I got one with my Ronin RS2, really useful and saves buying an external monitor for your camera.
Yes, I’ve got a Ronin RSC2 with Raveneye, the pro combo version.
worth getting then, have you sued with a drone
Sued? Do you mean tried?
When using the DJI RSC 2, RavenEye enables remote control of the gimbal, monitoring, and ActiveTrack 3.0, but the built-in screen cannot be used to transmit the camera live view. The system mounts to the gimbal and connects to the camera via HDMI cable and to the smartphone via Wi-Fi.
1 Like
I wasn’t aware that it worked with drones. It works via a WiFi signal from the camera gimbal and needs two wires attached to do so.
Basically it enables you to use a Ronin RS or smaller RSC camera gimbal from a distance and also enables the use of active tracking through a smart phone.
i did mean tried
1 Like
Revisiting an old topic, yes, it does work with a Dji RC2 controller using an additional cable not supplied with the Raveneye kit.

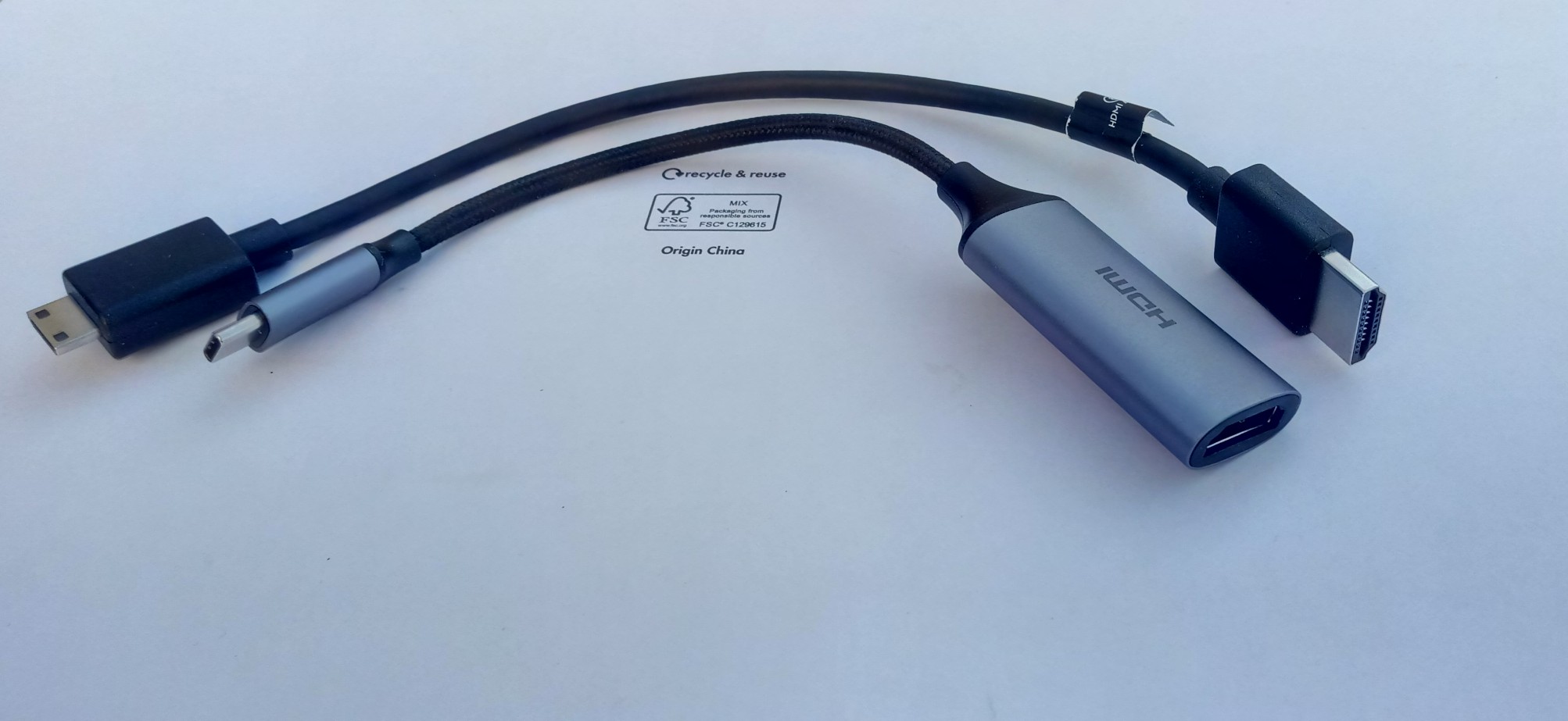

It has been proven to work with the RC2 PRO which has a dedicated HDMI port, as well as a usb-c port, so no additional cables were required, but the RC2 controller needs a usb-c to hdmi adaptor cable as well as the supplied hdmi-a to hdmi-c cable.
More problematic is that the receiving phone or tablet needs to be running the DJI Ronin app to log in to the Raveneye and to view the video feed.
The Raveneye is probably way over the top for just transmitting video to another phone or WiFi enabled monitor, as it has the ability for the receiving phone to remote control the Dji gimbals it was designed for.
