ViFly Beacon Mount for BetaFPV Meteor 75 Pro

3D Printing
1

Feel free to use and remix this print that I’ve designed.

Anyone that’s flown with me at a meetup, will know that I have the habit of losing my drones.:rofl:

@jcbdriver Eric pointed me towards the ViFLY Wireless Beacon Buzzer.

So after purchasing a couple of them, the only way I was able to fix them to my quads was by using tie wraps, which isn’t the best option for small quads (sub 2 inch), so I’ve designed this mount, which slots into the frame of the BetaFPV Meteor 75 Pro.

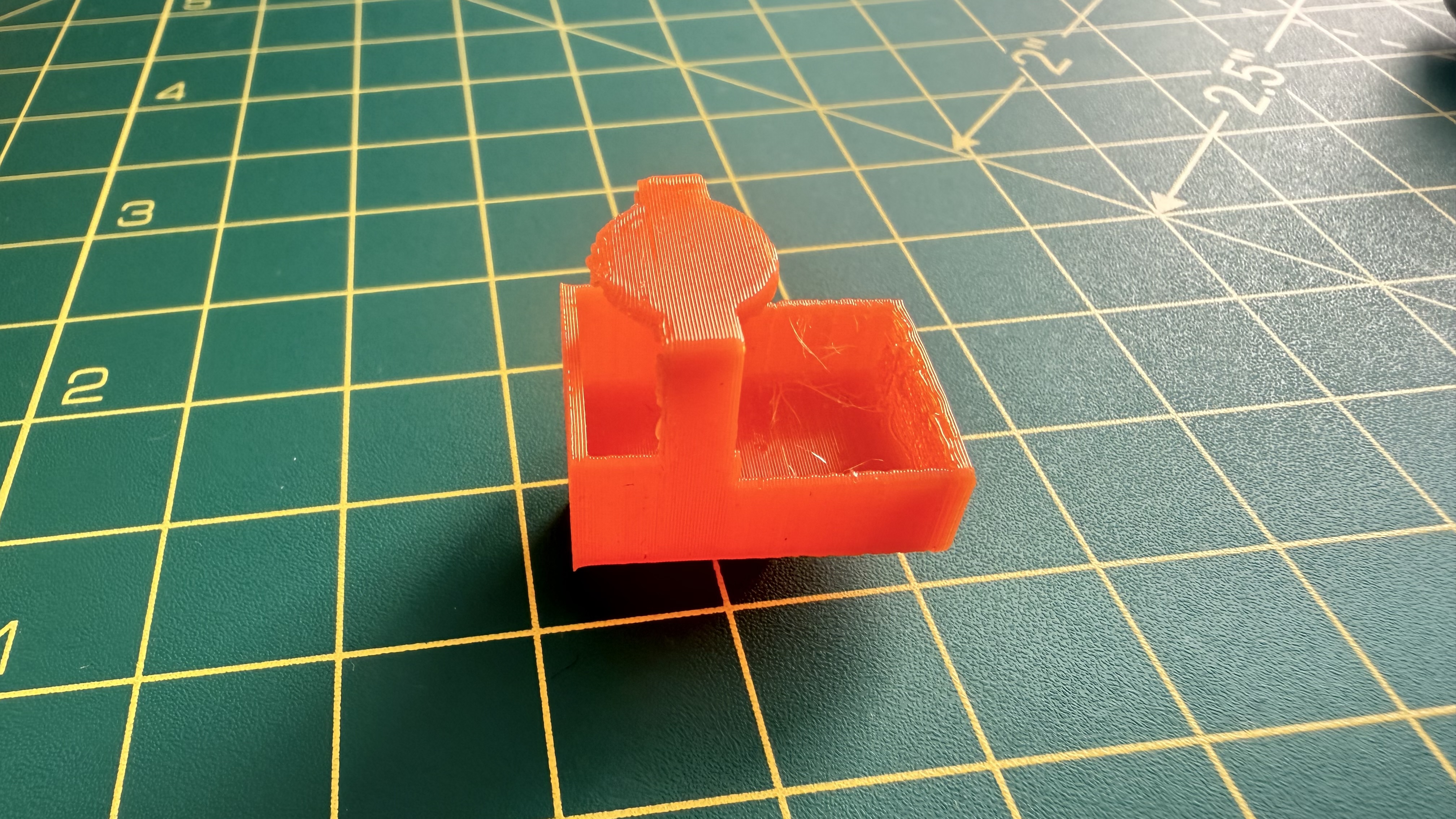

IMG_0390
IMG_03904032×2268 1.9 MB

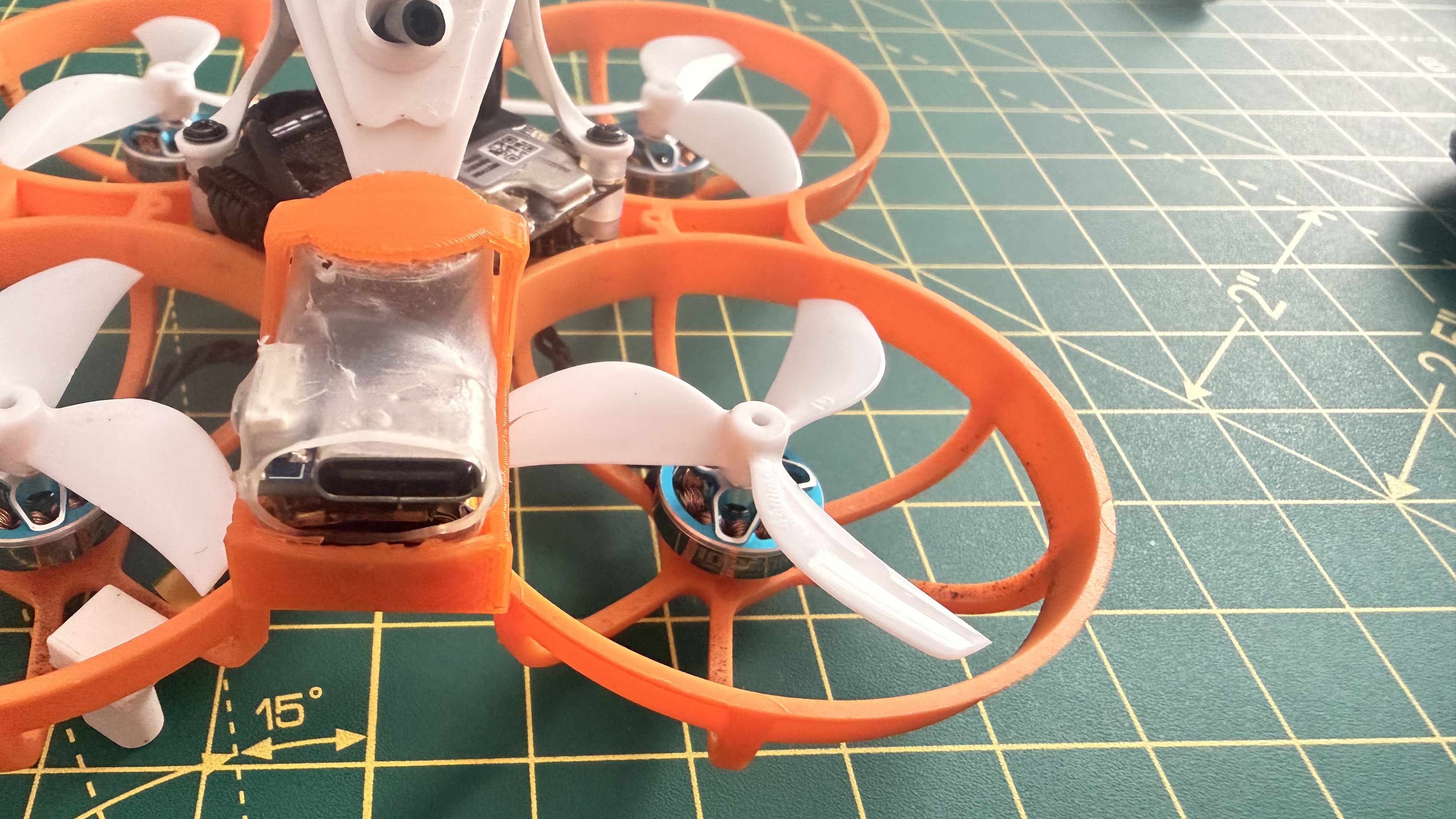

IMG_0391
IMG_03914032×2268 1.94 MB

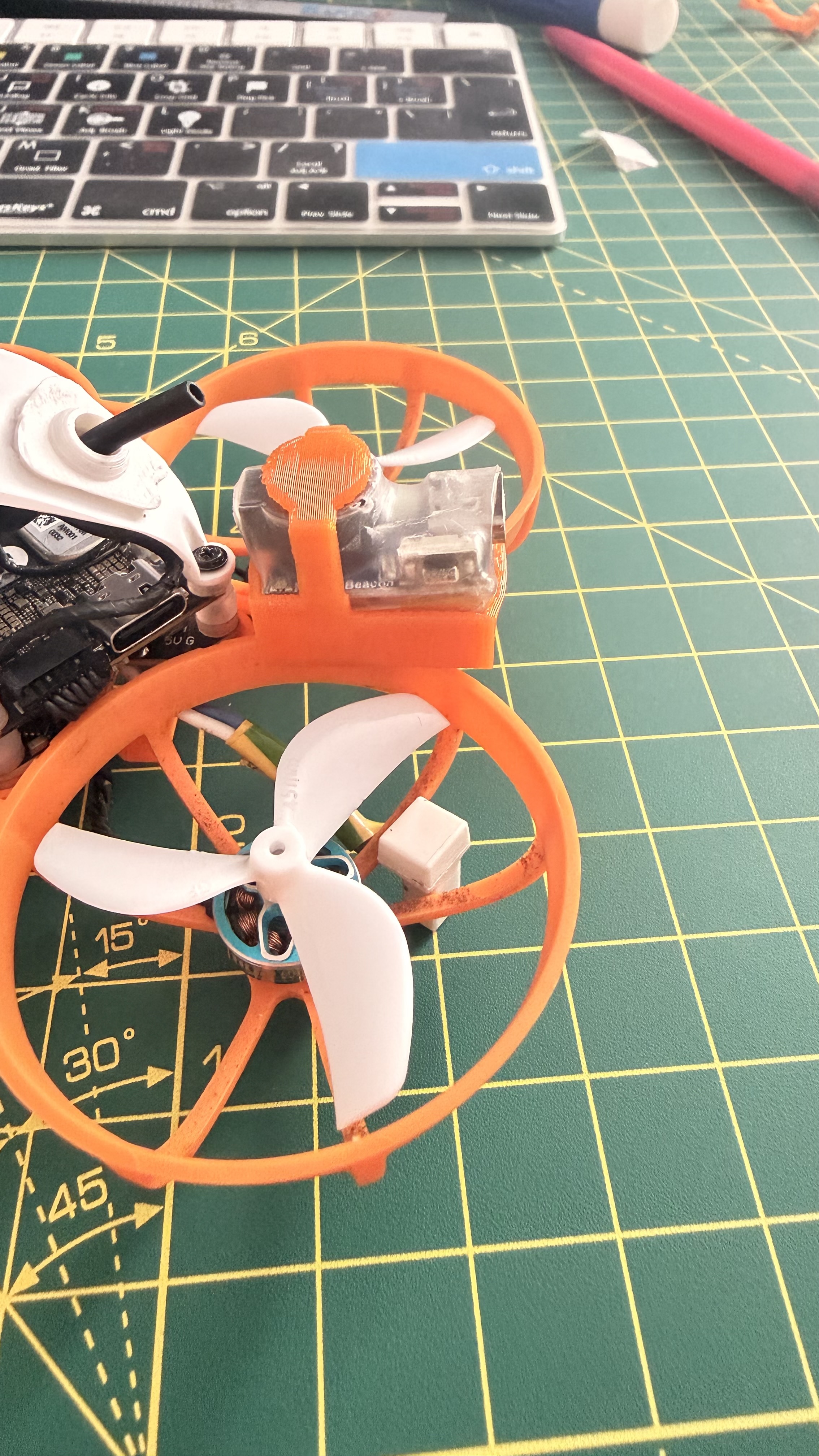

IMG_0389
IMG_03894032×2268 1.19 MB

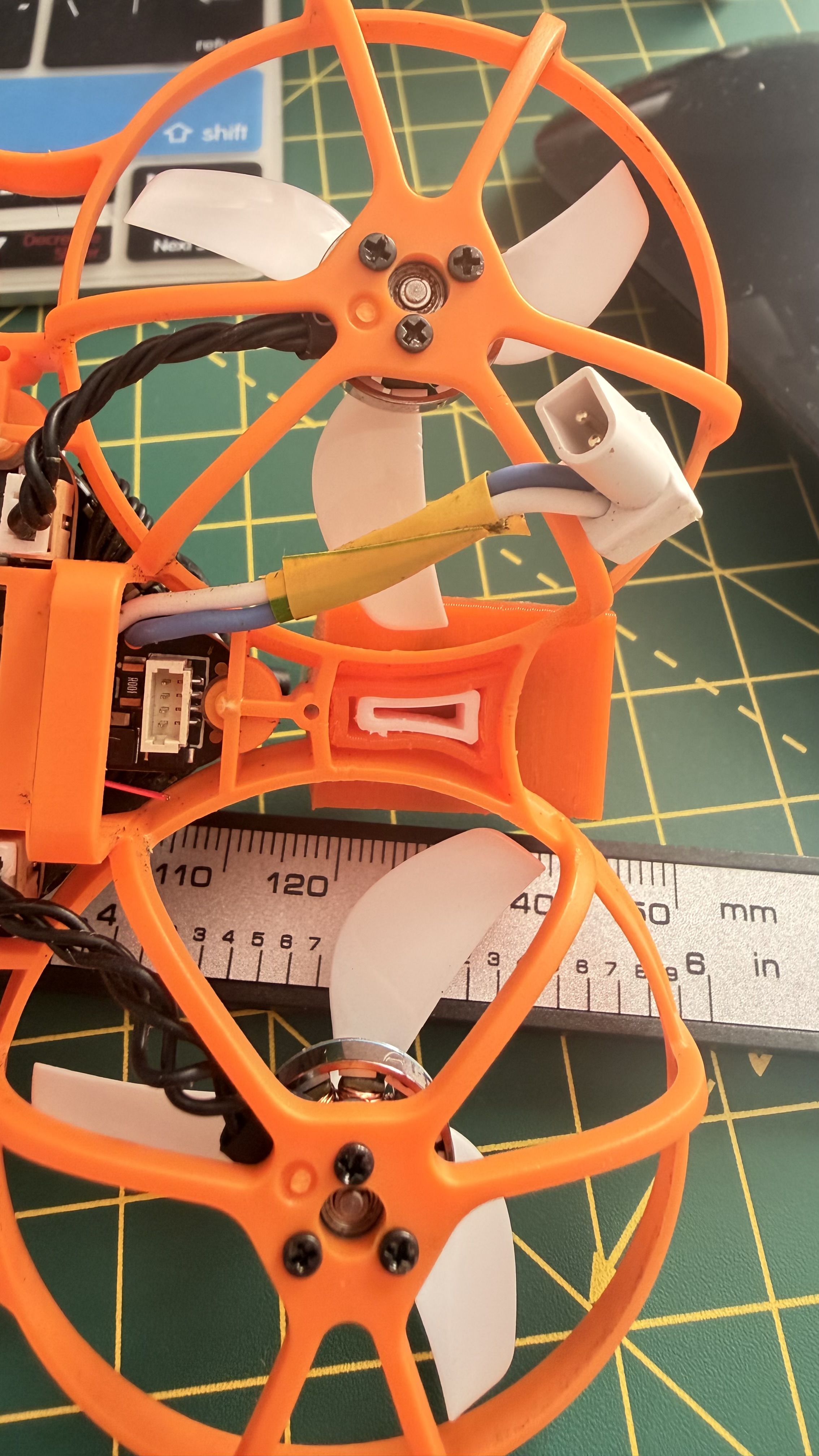

IMG_0388
IMG_03884032×2268 1.31 MB

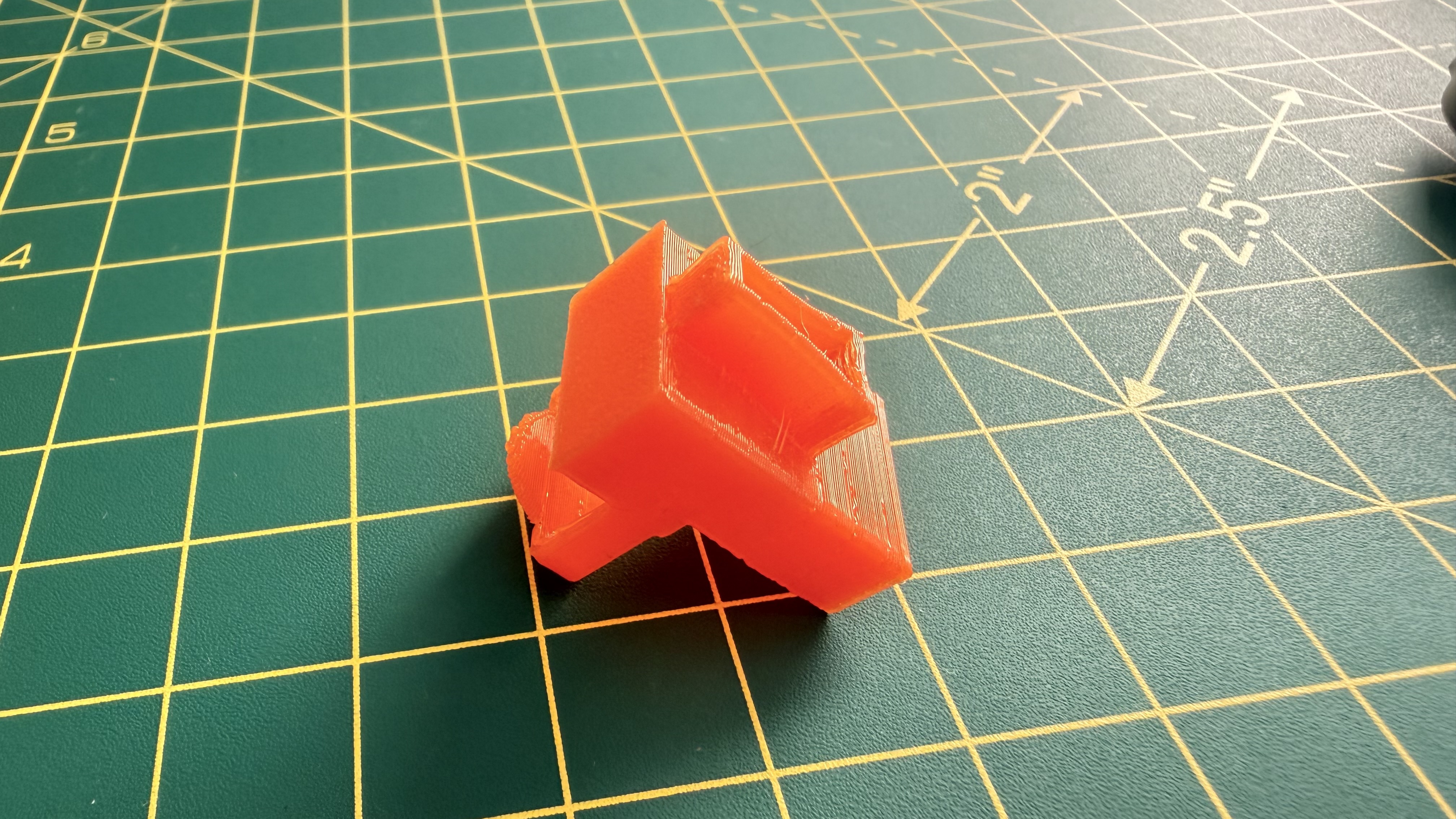

IMG_0387
IMG_03872268×4032 1.53 MB

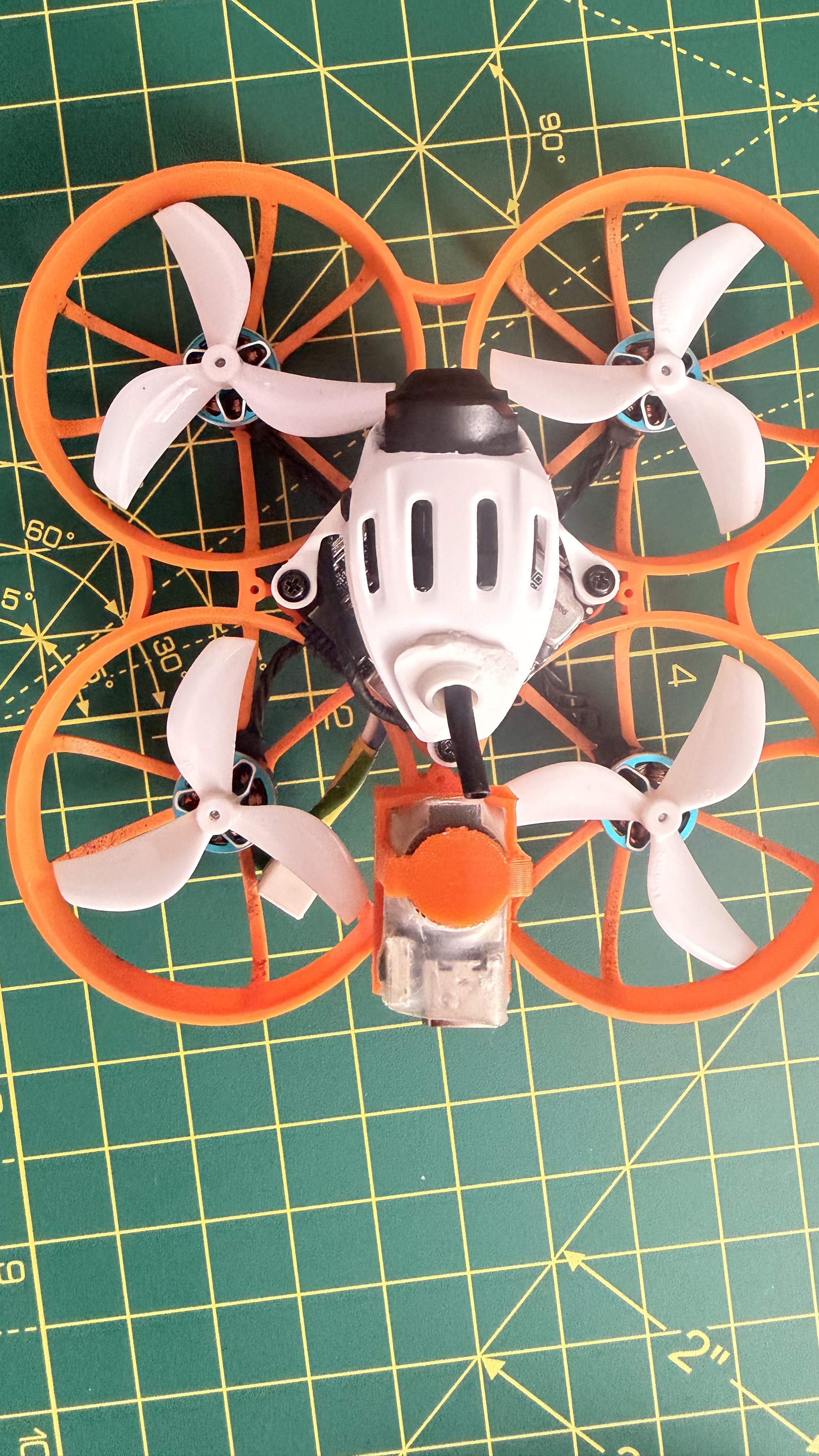

IMG_0393
IMG_03932268×4032 1.79 MB

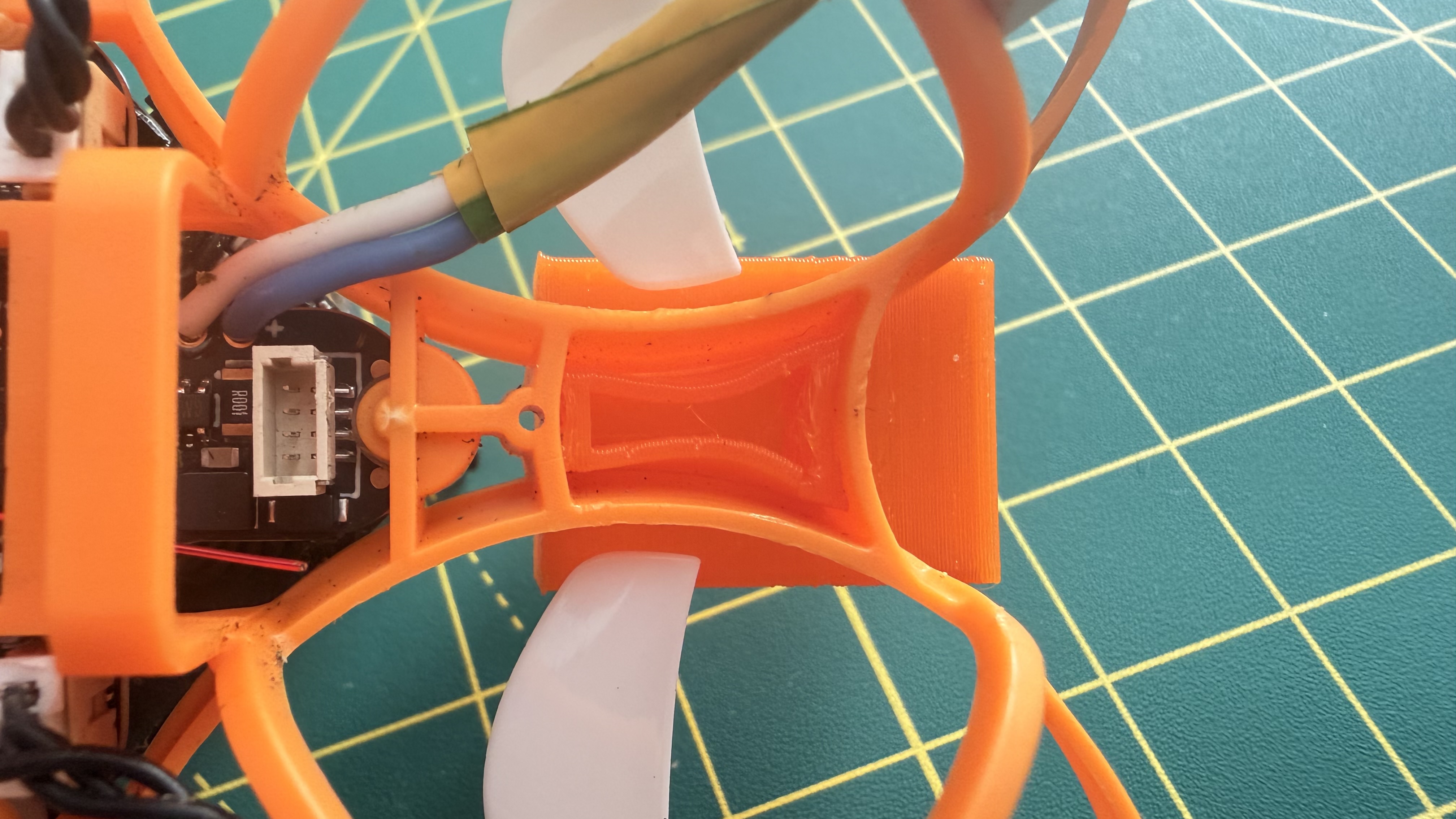

IMG_0395
IMG_03954032×2268 1.57 MB

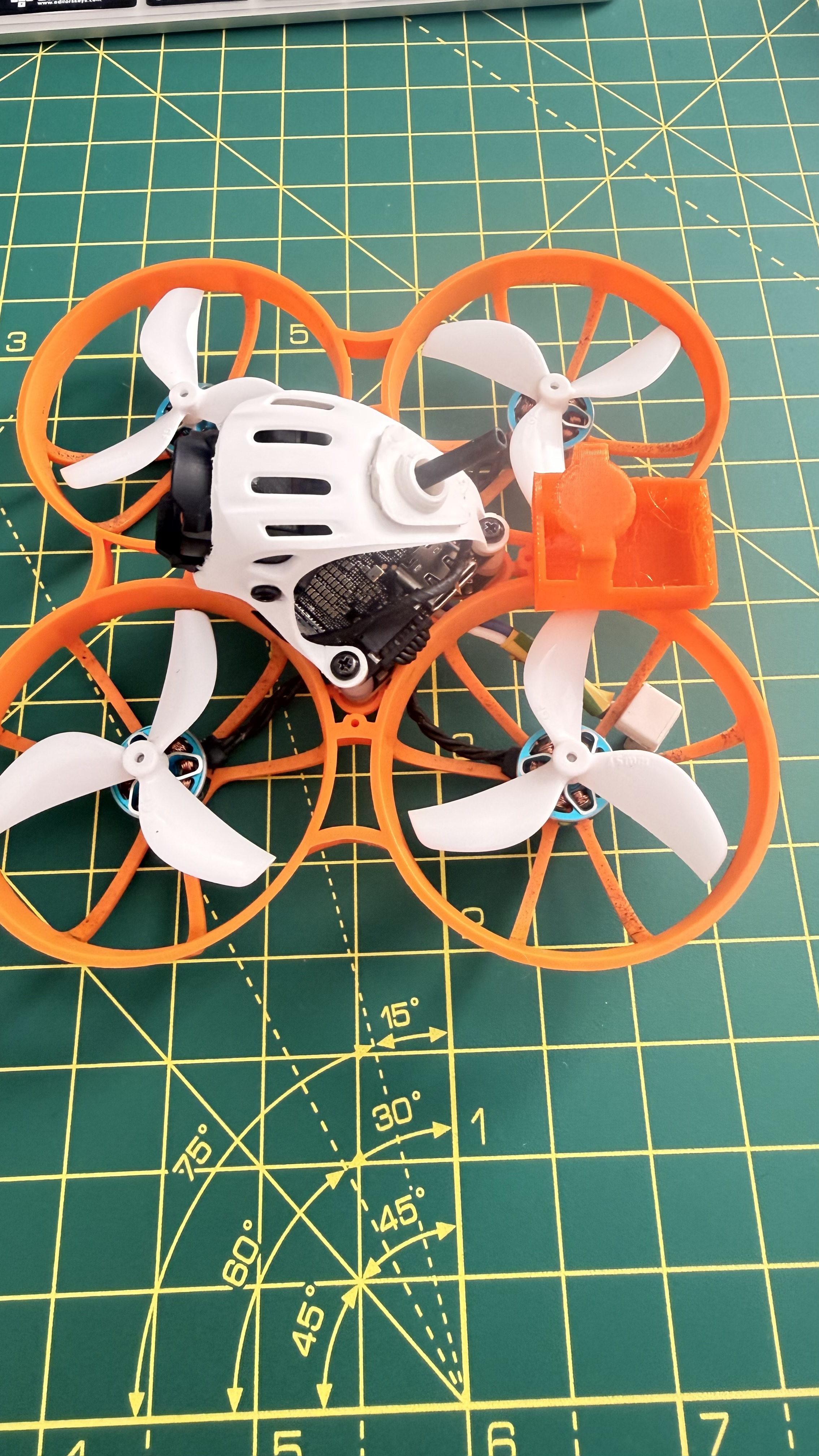

IMG_0394
IMG_03942268×4032 1.89 MB

Is a snug fit and there’s a small PLA plug, which keeps the TPU mount in place, to ensure it doesn’t come loose.

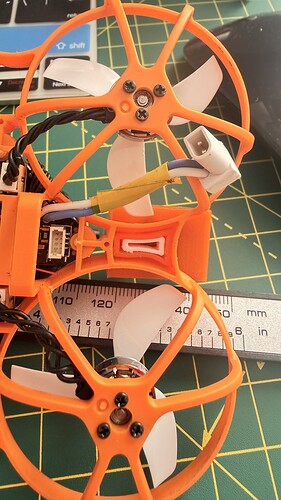

IMG_0397
IMG_03972268×4032 1.31 MB

I have attached the .mf3 & .stl files

Buzzer Mount - Stl’s & 3mf Files.zip (90.6 KB)

I’m now going to alter this model, so it fits the BetaPFV Pavo Femto. :+1:t2:

4 Likes
2

Somehow I missed this, looks awesome @TheBinman. Is it for the vifly mini or the regular one?

I have a mini tie-wrapped to the top of the canopy but this looks much slicker.

Couldn’t live without mine, I’ve relied on it many, many times now!

3

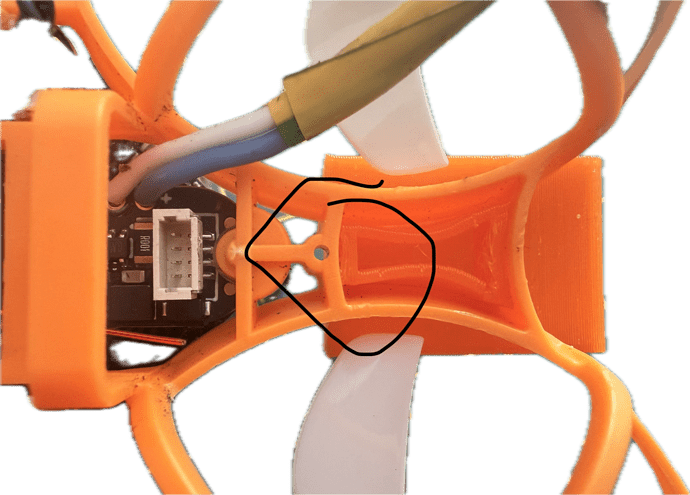

Going purely from the photos, did you consider extending it slightly and trying to use this screw hole to secure it even more?

image1900×1364 3.45 MB

4

I never thought of that, I may update the model and re-share once tested. :+1:t2:
