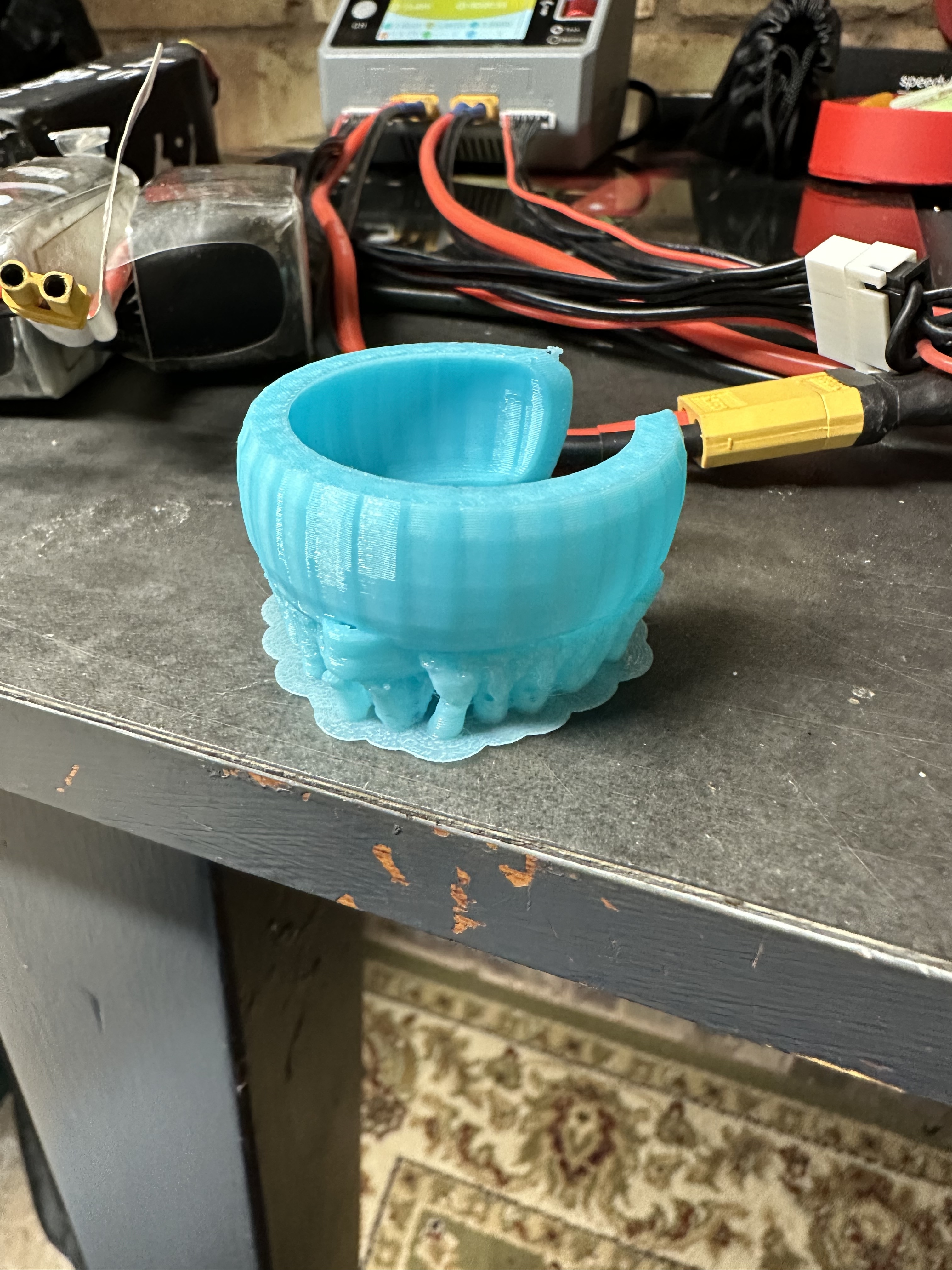

Well gave it another shot and turned on the support option and ha presto it worked. Maybe not the cleanest print as I’ve brought some off eBay in the past and they are smooth…
But with a bit of tweaking I think I can improve it
What you think ???
3 Likes
You’re welcome
1 Like
As long as you’re happy with it in the end… but may have turned out better if the filament was dry.
1 Like
Does anyone know if you can rescale or remove anything from STI file in Bambu studio?, I thought id managed to work it out.
But as always as always it wants to rescale the whole thing which would throw the dims out of what I want to print…
I had one the other week, now I am no expert, but I was making the DeLorean from Back to the Future and the steering wheel would not print even with supports, so the designer told me how to remove just that part form his file before slicing it.
Maybe this isn’t what you mean but have a look?
Scroll down to 8/26/24
Also there are tools for removing certain parts before slicing, I have used these a few times myself, there are videos explaining on either YT or BambuWiKi
Anyone with a X1C P1S/P or A1 want the best plate available, get this below, I did and it is brilliant, no need to clean it or use glue, will work with PLA and PETG (need to adjust petg settings in slicer)
Seriously it just works, and I am not on commission, I was doubtful at first, love that much I have also now ordered the smooth plate version
Hi had my A1 mini a few weeks now, been printing in PLA with no problem but TPU is a nighmare tried varoious setting but just cant dial it in enough for a smmooth finish…
Can anyone please point me in the right direction ??? Iv found some setting via Mad Tech as below but not sure how you enter these or where as to giveing them a go…
{
“bottom_shell_layers”: “3”,
“bottom_shell_thickness”: “0”,
“bottom_surface_pattern”: “monotonic”,
“bridge_angle”: “0”,
“bridge_flow”: “1”,
“bridge_no_support”: “0”,
“bridge_speed”: “75”,
“brim_object_gap”: “0.1”,
“brim_type”: “auto_brim”,
“brim_width”: “5”,
“compatible_printers”: [
“Bambu Lab X1 Carbon 0.4 nozzle”,
“Bambu Lab X1 0.4 nozzle”,
“Bambu Lab P1S 0.4 nozzle”
],
“compatible_printers_condition”: “”,
“default_acceleration”: “10000”,
“detect_narrow_internal_solid_infill”: “1”,
“detect_overhang_wall”: “1”,
“detect_thin_wall”: “0”,
“draft_shield”: “disabled”,
“elefant_foot_compensation”: “0.15”,
“enable_arc_fitting”: “1”,
“enable_overhang_speed”: “1”,
“enable_prime_tower”: “1”,
“enable_support”: “1”,
“enforce_support_layers”: “0”,
“ensure_vertical_shell_thickness”: “1”,
“filename_format”: “{input_filename_base}{filament_type[0]}{print_time}.gcode”,
“flush_into_infill”: “0”,
“flush_into_objects”: “0”,
“flush_into_support”: “1”,
“from”: “”,
“fuzzy_skin”: “none”,
“fuzzy_skin_point_distance”: “0.8”,
“fuzzy_skin_thickness”: “0.3”,
“gap_infill_speed”: “250”,
“gcode_add_line_number”: “0”,
“independent_support_layer_height”: “1”,
“infill_combination”: “0”,
“infill_direction”: “45”,
“infill_wall_overlap”: “15%”,
“inherits”: “0.20mm Standard @BBL X1C”,
“initial_layer_acceleration”: “500”,
“initial_layer_infill_speed”: “105”,
“initial_layer_line_width”: “0.5”,
“initial_layer_print_height”: “0.2”,
“initial_layer_speed”: “50”,
“inner_wall_line_width”: “0.45”,
“inner_wall_speed”: “300”,
“interface_shells”: “0”,
“internal_bridge_support_thickness”: “0.8”,
“internal_solid_infill_line_width”: “0.42”,
“internal_solid_infill_speed”: “250”,
“ironing_flow”: “10%”,
“ironing_spacing”: “0.15”,
“ironing_speed”: “30”,
“ironing_type”: “no ironing”,
“layer_height”: “0.2”,
“line_width”: “0.42”,
“max_bridge_length”: “10”,
“max_travel_detour_distance”: “0”,
“min_bead_width”: “85%”,
“min_feature_size”: “25%”,
“minimum_sparse_infill_area”: “15”,
“name”: “0.20mm TPU @BBL X1C -”,
“only_one_wall_top”: “1”,
“ooze_prevention”: “0”,
“outer_wall_acceleration”: “5000”,
“outer_wall_line_width”: “0.42”,
“outer_wall_speed”: “200”,
“overhang_1_4_speed”: “0”,
“overhang_2_4_speed”: “30”,
“overhang_3_4_speed”: “20”,
“overhang_4_4_speed”: “10”,
“post_process”: ,
“prime_tower_brim_width”: “3”,
“prime_tower_width”: “35”,
“prime_volume”: “45”,
“print_sequence”: “by layer”,
“print_settings_id”: “0.20mm TPU @BBL X1C -”,
“raft_contact_distance”: “0.1”,
“raft_expansion”: “1.5”,
“raft_first_layer_density”: “90%”,
“raft_first_layer_expansion”: “2”,
“raft_layers”: “0”,
“reduce_crossing_wall”: “0”,
“reduce_infill_retraction”: “1”,
“resolution”: “0.012”,
“seam_position”: “aligned”,
“skirt_distance”: “2”,
“skirt_height”: “1”,
“skirt_loops”: “0”,
“slice_closing_radius”: “0.049”,
“slicing_mode”: “regular”,
“solid_infill_filament”: “1”,
“sparse_infill_density”: “15%”,
“sparse_infill_filament”: “1”,
“sparse_infill_line_width”: “0.45”,
“sparse_infill_pattern”: “grid”,
“sparse_infill_speed”: “270”,
“spiral_mode”: “0”,
“standby_temperature_delta”: “-5”,
“support_angle”: “0”,
“support_base_pattern”: “default”,
“support_base_pattern_spacing”: “2”,
“support_bottom_interface_spacing”: “0.5”,
“support_bottom_z_distance”: “0.2”,
“support_critical_regions_only”: “0”,
“support_expansion”: “0”,
“support_filament”: “0”,
“support_interface_bottom_layers”: “2”,
“support_interface_filament”: “0”,
“support_interface_loop_pattern”: “0”,
“support_interface_pattern”: “auto”,
“support_interface_spacing”: “0.5”,
“support_interface_speed”: “80”,
“support_interface_top_layers”: “2”,
“support_line_width”: “0.42”,
“support_object_xy_distance”: “0.5”,
“support_on_build_plate_only”: “0”,
“support_speed”: “150”,
“support_style”: “default”,
“support_threshold_angle”: “30”,
“support_top_z_distance”: “0.35”,
“support_type”: “normal(auto)”,
“thick_bridges”: “0”,
“timelapse_type”: “0”,
“top_shell_layers”: “3”,
“top_shell_thickness”: “0.6”,
“top_surface_acceleration”: “2000”,
“top_surface_line_width”: “0.42”,
“top_surface_pattern”: “monotonicline”,
“top_surface_speed”: “200”,
“travel_speed”: “500”,
“travel_speed_z”: “0”,
“tree_support_branch_angle”: “45”,
“tree_support_branch_diameter”: “2”,
“tree_support_branch_distance”: “5”,
“tree_support_wall_count”: “1”,
“version”: “1.5.0.19”,
“wall_distribution_count”: “1”,
“wall_filament”: “1”,
“wall_generator”: “arachne”,
“wall_infill_order”: “inner wall/outer wall/infill”,
“wall_loops”: “3”,
“wall_transition_angle”: “10”,
“wall_transition_filter_deviation”: “25%”,
“wall_transition_length”: “100%”,
“wipe_tower_no_sparse_layers”: “0”,
“xy_contour_compensation”: “0”,
“xy_hole_compensation”: “0”
1 Like
TPU is hard even on my X1C, but possible, watch this video and see if it helps, I used to just use the external feed on my X1C, now I use a filament heater and feed from that
Cheers mate I’ll give it a go tomorrow
1 Like
@yorkie9668 Good find…
Ordered including a light bar to get free shipping, I’m very keen to see a saving of 50W printing ABS and ASA,
1 Like
I have both of them now, not used the smooth one yet but believe me the Textured is out of this world, you won’t be sorry mate

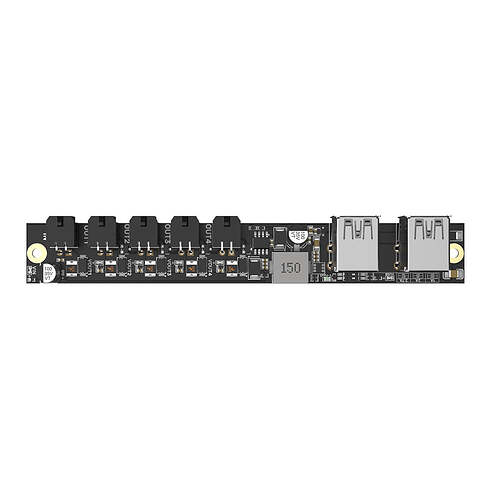

I ordered the rear USB hub, it has made available 4 USB slots for the internal lights etc, but fitted it to the left of the back above the power button
1 Like
Should have browsed a bit more, missed it…
I’m thinking of waiting for the plate before my next RC print which I was going to start over the weekend…
1 Like
I bought mine from AliExpress, from the BIGTREETECH store and saved loads
Never used AliExpress, got a link?
Lot of goodies…
1 Like
