Ok I’ll be on here around 5 tomorrow. Hopefully I can get flying soon. Thank you so much for your time
I think it’s plugged into the wrong socket
Need to find out the board version number to get the right diagram. Also could be a dodgy plug
Ok there is 1 more socket I could be plugged into so it may be that
Be careful you don’t release the magic smoke…
1 Like
Need to check the board first don’t want to put 10v into a 5v receiver
I won’t plug it in there without being sure because that would be a disaster
Hi again is anyone able to help right now?
1 Like
Where abouts are you at? We think the receiver is bound to the controller right? Can you give us clear photos of the flight controller wiring?
Sure I’ll try my best to get some good photos of them
@DeanoG60 do you remember the issue with one of your builds where one of the uarts just wouldn’t work? Do you think this might be something similar?
can’t remember if you ended up hardwiring instead of using a plug or changed to a different uart?
That was with my OSD on my DJI build I ended up changing UART. But mine is the F4 board.
I still think the RX is wired to the wrong pins. The photos of the flight controller will help loads. Make sure to photograph the plug as well
Uploading: 95EEC7E1-F4B3-4DF5-A4D3-D4C69F9189D1.jpeg…
Uploading: E51A9A4A-C1CE-42B2-9D73-6B05C11A6777.jpeg…
Uploading: 267DDC8E-71D5-4B9E-A556-B2B388545FE9.jpeg…
I don’t know how useful these are to you
Sorry this is the best I can do because I still can’t find a screwdriver head small enough to take the top plate off

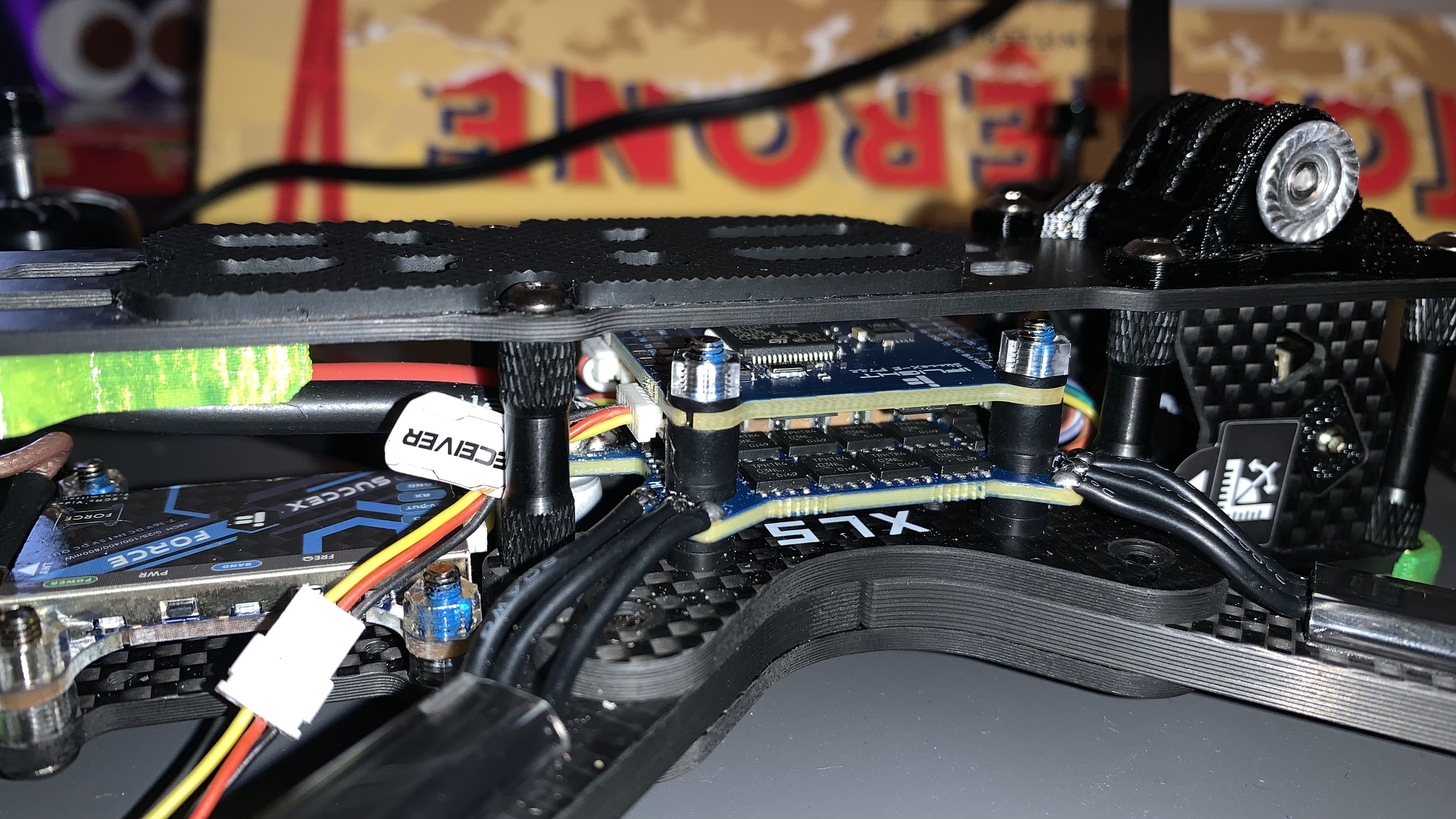

Can you get a closeup of this?
1 Like
It’ll be difficult without seeing the boards properly. Can you see anywhere on the board which version number it is so we can find the correct diagram?
