Some Direction

ah it gets stranger as just come across this

Well that’s for inav, not betaflight, seems not very well supported FC (though cheap!). You got teh full or the basic one BTW?

Does it look OK on betaflight configurator? i.e. move when you rotate, etc?

Full and nothing no motor input in BF …

Not really understanding a lot of the above but reading through it it looks like people are flashing with the Flywoo software. wondering if its worth a go :+1:t3:

Flywoo no good and tried an earlier version of what it should be :man_shrugging:t3:

Put it on the naughty step and have a curly wurly. Then come back to it and reflash 4.3.0 JHEF411 and post the diff all

Can you post all the text? Or is that it?

Thats it

Can you type ‘get motor’

My bad

Entering CLI Mode, type ‘exit’ to return, or ‘help’

Building AutoComplete Cache … Done!

diff

version

Betaflight / STM32F411 (S411) 4.3.0 Jun 11 2022 / 08:24:06 (229ac6675) MSP API: 1.44

config: YES

start the command batch

batch start

board_name JHEF411
manufacturer_id JHEF

feature

feature -RX_PARALLEL_PWM

master

set acc_calibration = -50,16,26,1

profile 0

rateprofile 0

end the command batch

batch end

diffall

###ERROR IN input: UNKNOWN COMMAND, TRY ‘HELP’###

diff all

version

Betaflight / STM32F411 (S411) 4.3.0 Jun 11 2022 / 08:24:06 (229ac6675) MSP API: 1.44

config: YES

start the command batch

batch start

reset configuration to default settings

defaults nosave

board_name JHEF411
manufacturer_id JHEF
mcu_id 002900563032511935383938
signature

feature

feature -RX_PARALLEL_PWM

master

set acc_calibration = -50,16,26,1

profile 0

profile 1

profile 2

restore original profile selection

profile 0

rateprofile 0

rateprofile 1

rateprofile 2

rateprofile 3

rateprofile 4

rateprofile 5

restore original rateprofile selection

rateprofile 0

save configur

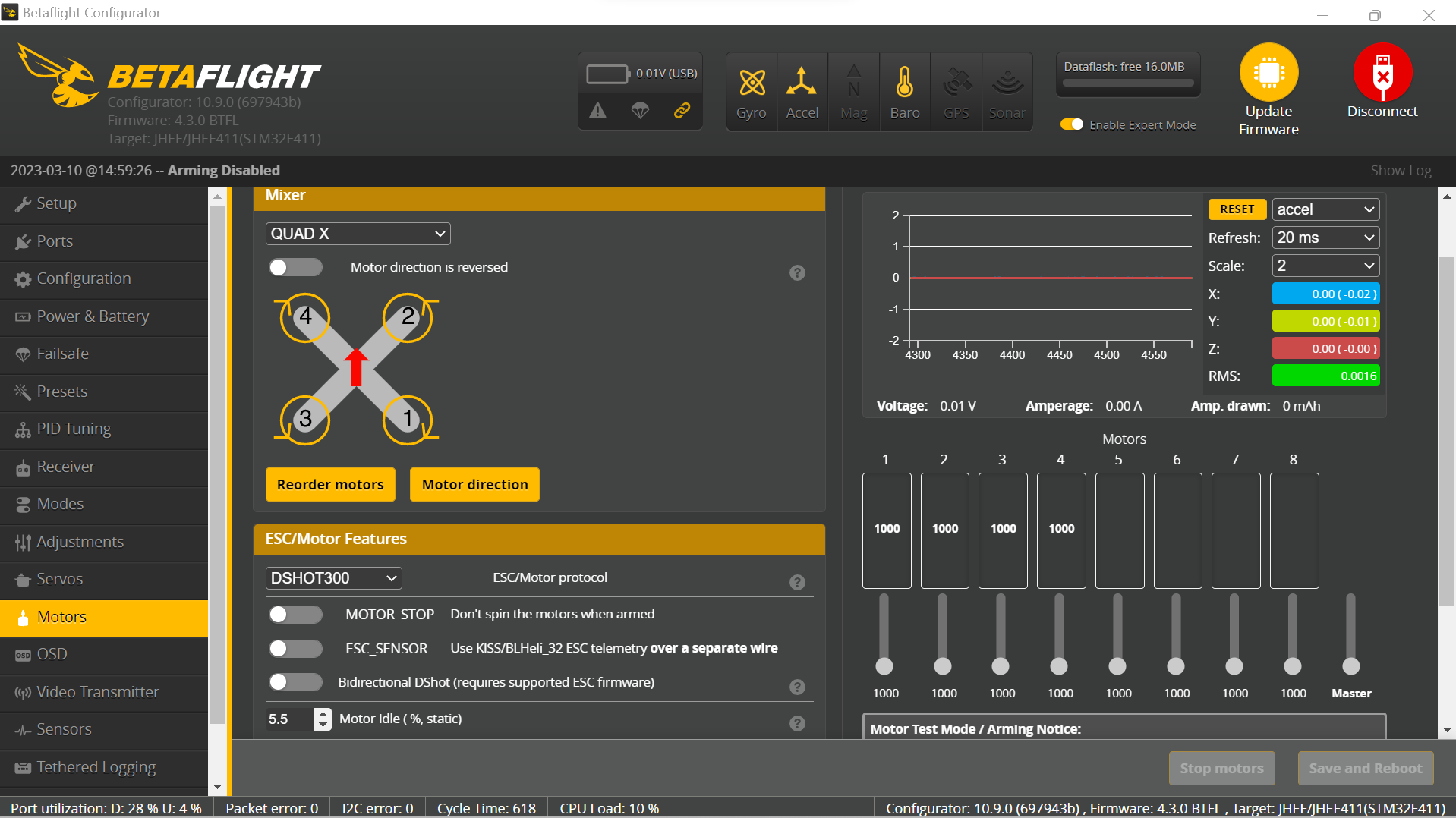

Can you screenshot the motor tab?

Plug a lipo in to see what tones you get

Fire and sirens coming :slight_smile:

Just the first bit not the der der if that’s the sound :man_facepalming:t3:

1 Like

I can’t remember, but why did you change the fc? Was it because of a crash?

Its been that long ago now I cant blood remember myself :rofl:
You thinking it might be the esc ??? have I gotta start looking at how to test an esc :man_facepalming:t3:

Best way is elimination. Using another esc or fc.
But cheer up, I just crashed by 3" into my pond


Yah im sure the esc is good checked with meter
