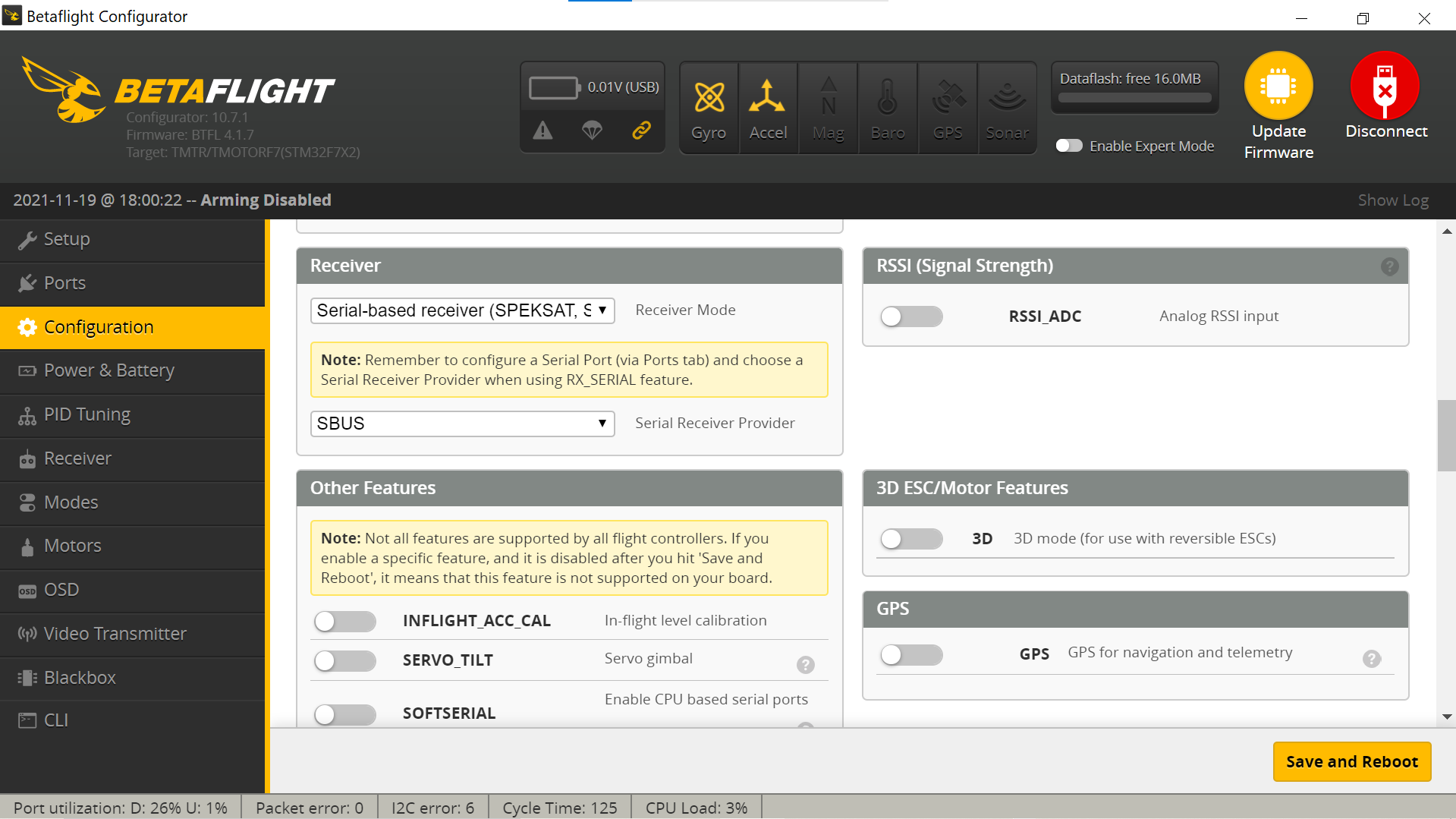

Have you set up your configuration tab and selected SBUS for the receiver type?

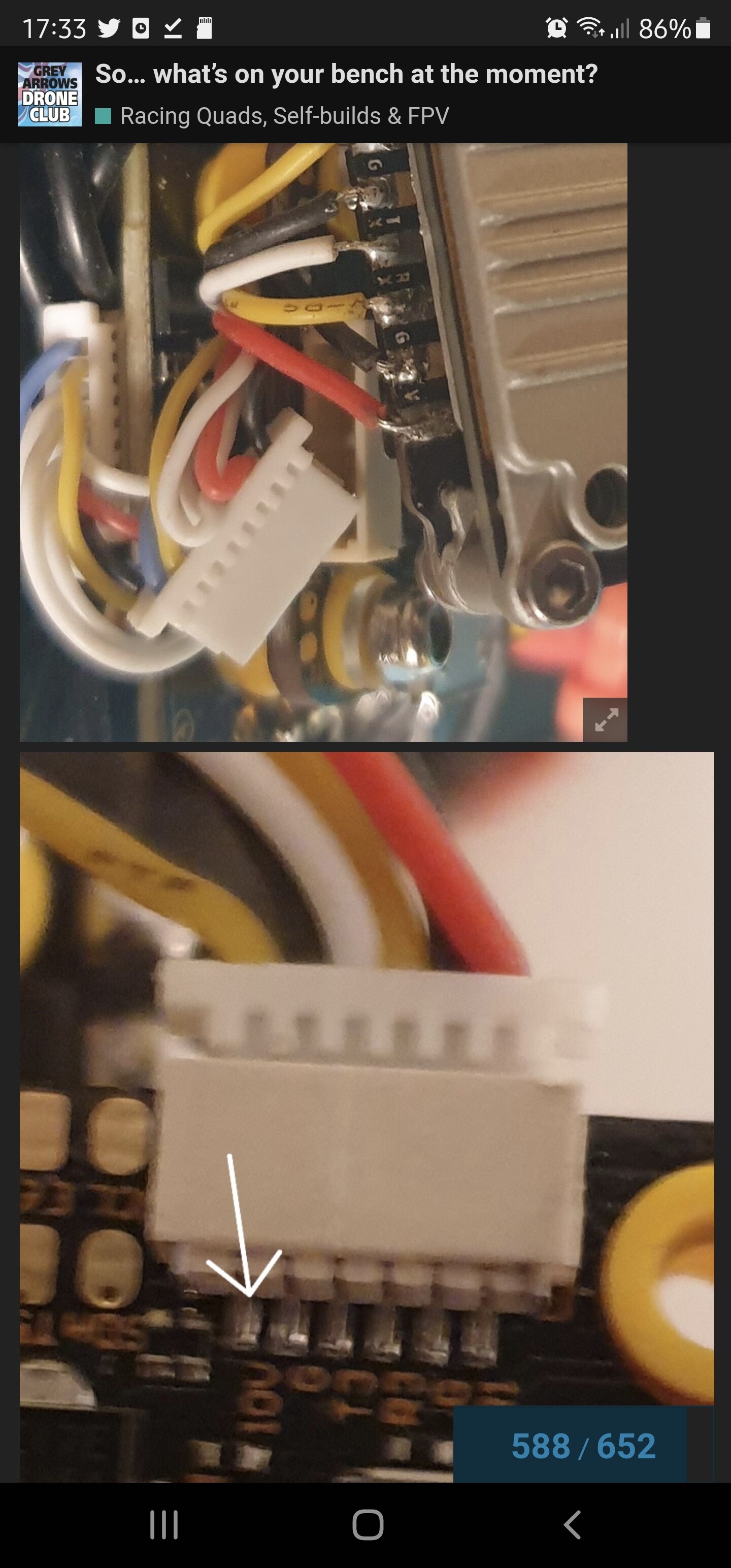

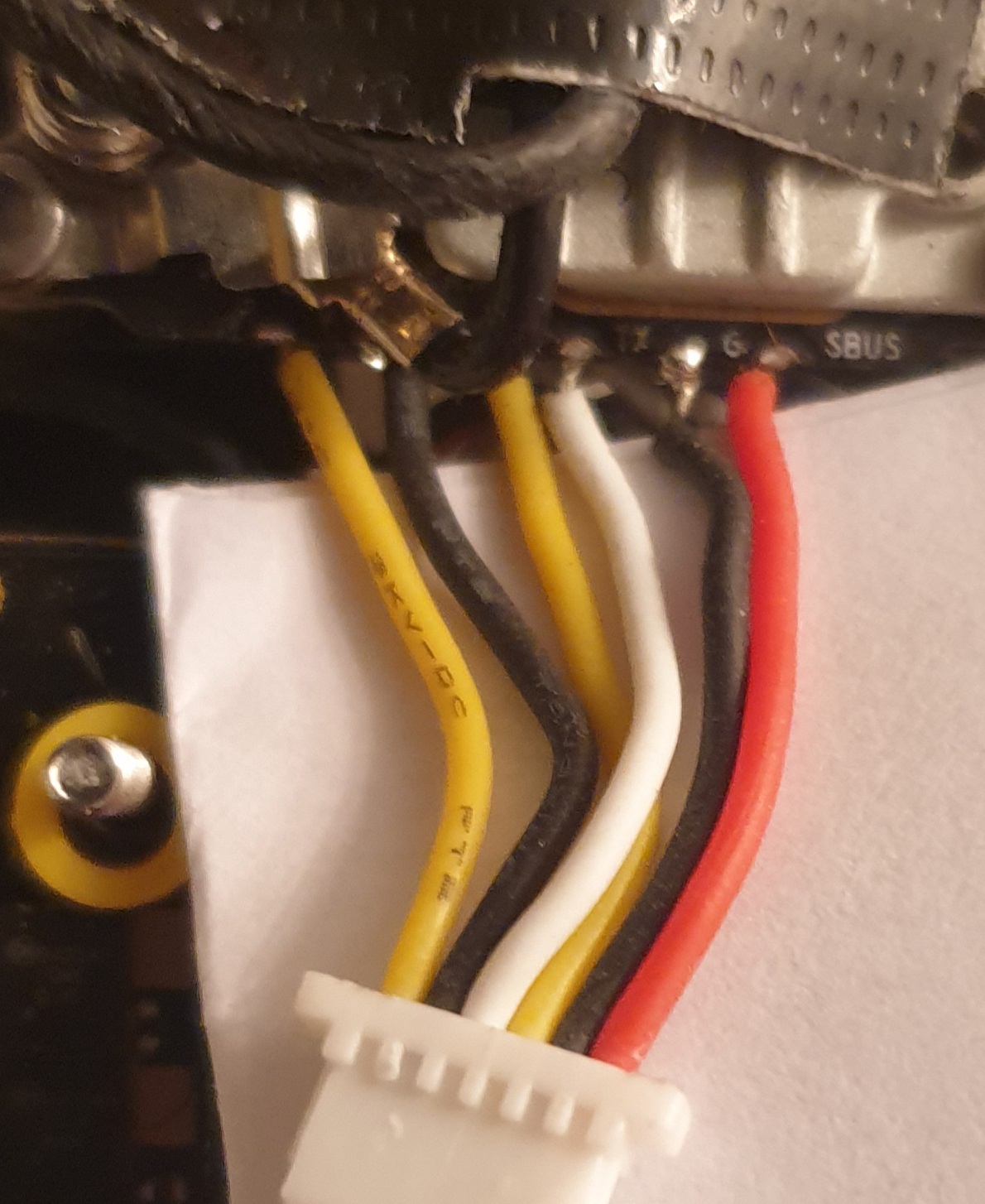

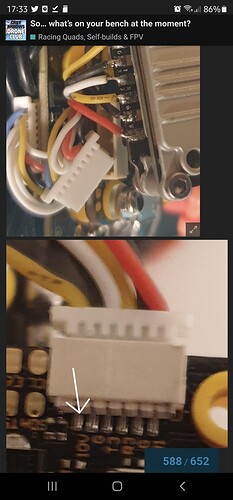

Ok so that looks like your rx and tx are the wrong way but the sbus and 10V are correct. Can you post a photo of your ports tab and like Deano said have you selected Sbus in your configuration tab?

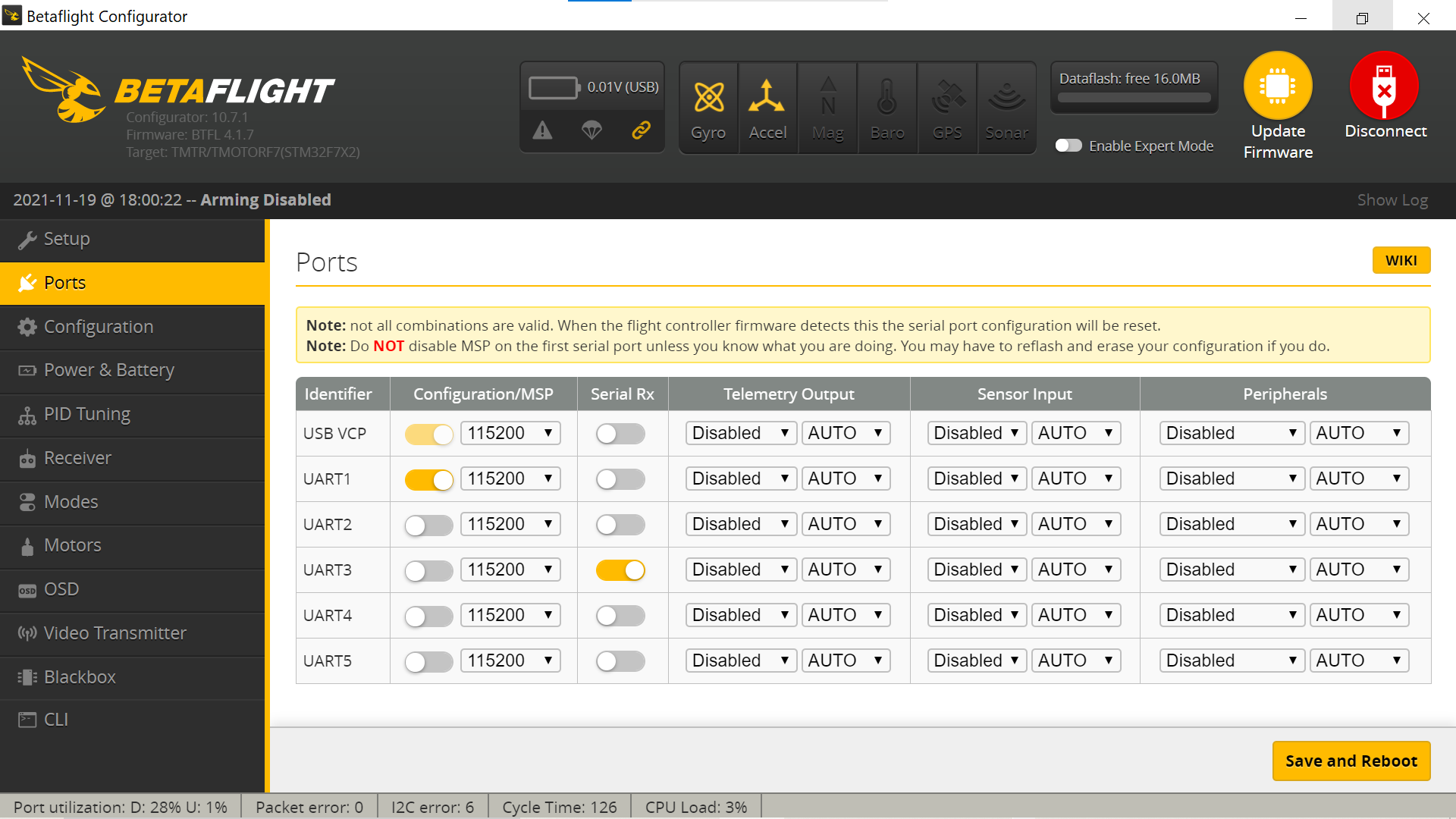

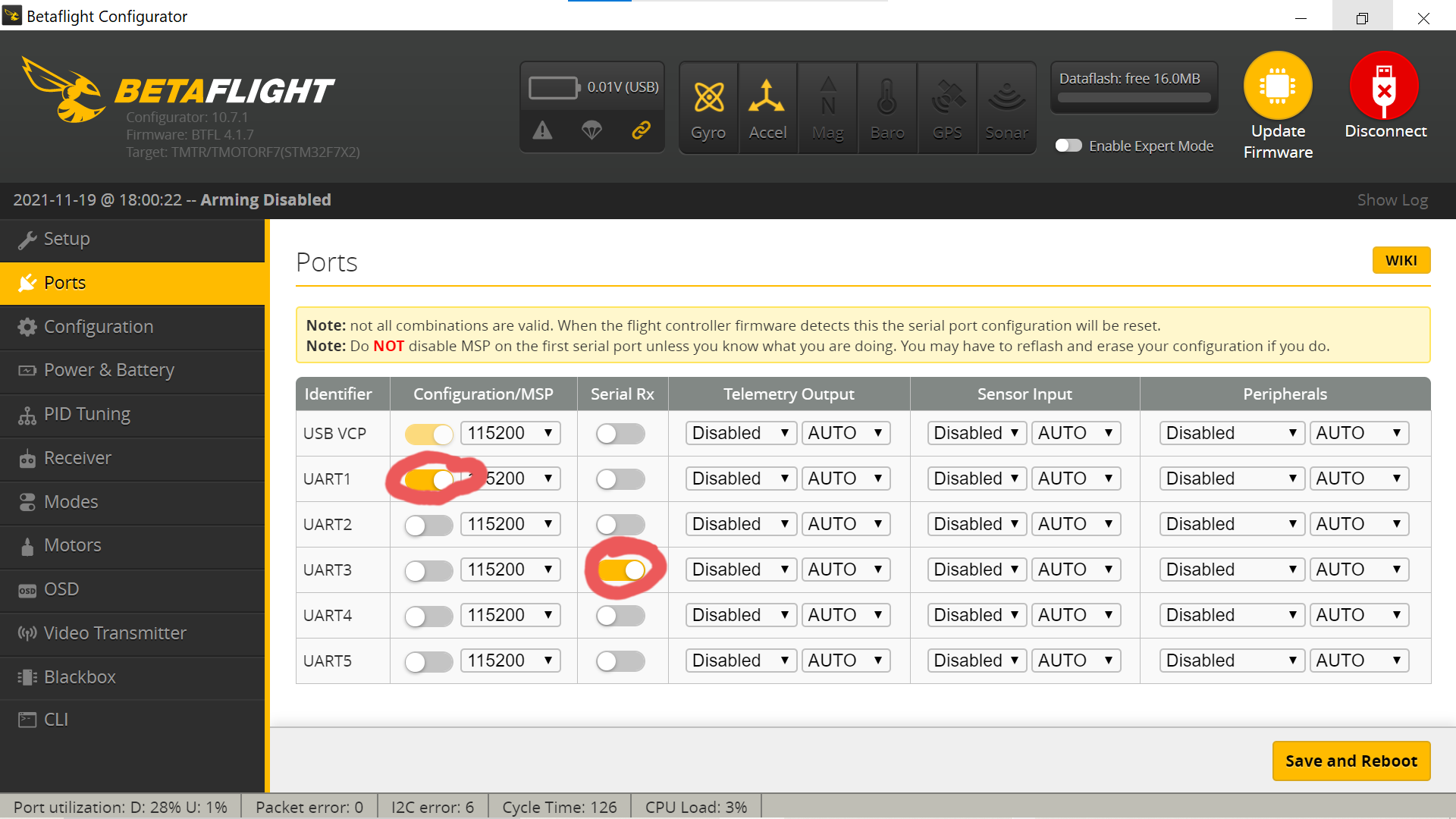

So that’s wrong. You need uart 1 set to serial rx and uart 3 set to msp. Then you need to swap the yellow/ white rx/tx wires on the Vista
No the 2 in the middle (rx/tx) wires
The white and yellow next to each other

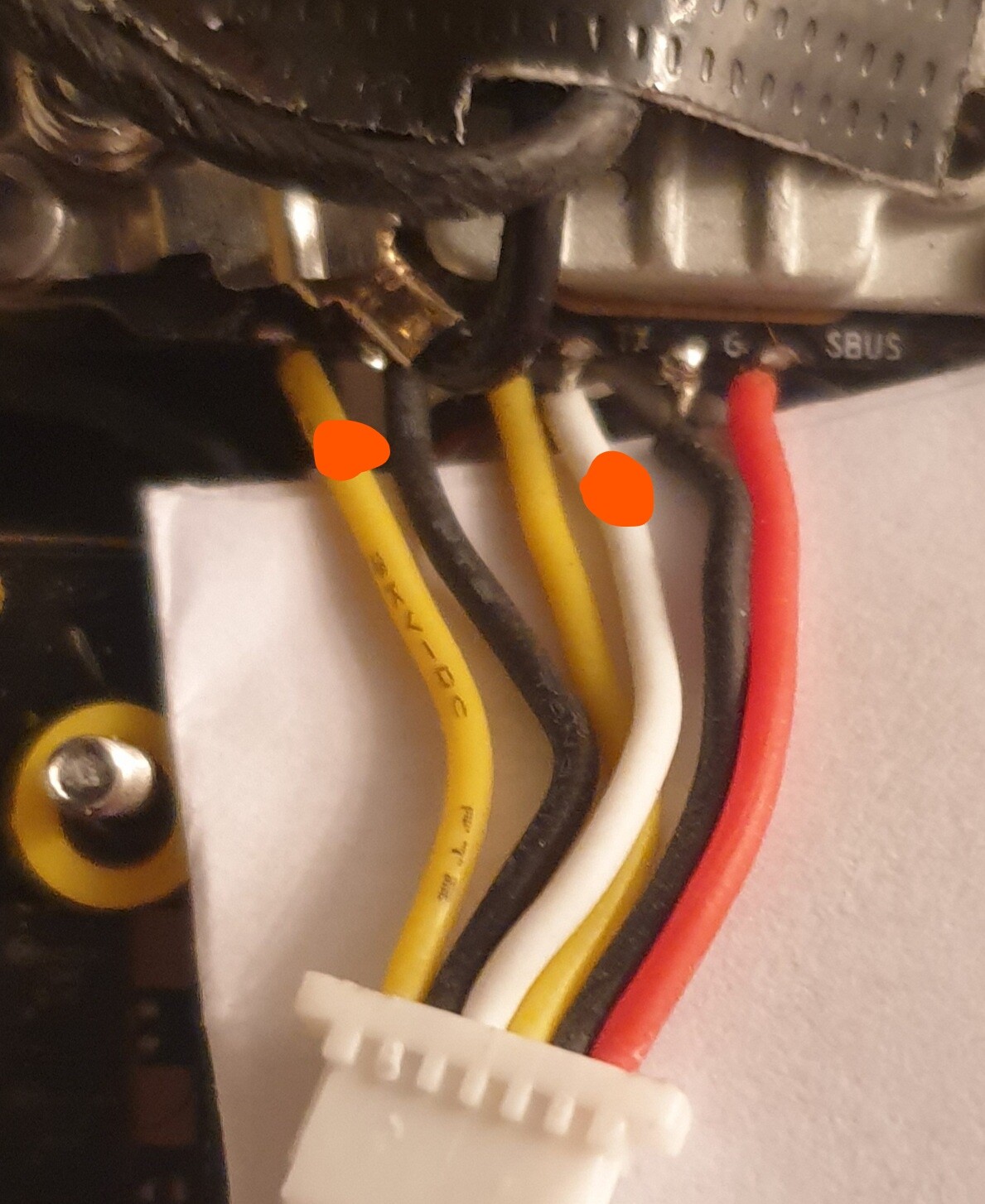

The first yellow wire is correct that’s your SBUS wire. Swap the other yellow wire with the white wire.
1 Like
Although that will only effect your OSD and not your control link
1 Like
Thanks guys much appreciated I will swop them over tomorrow, need a beer and laydown in a dark room
On a happier note I was down the power station and did 4 packs practising the dreaded split S and gotta say I pulled a couple off
Mind you the old Nazgal is looking worst for it …lol
Have one for us too
Should be up and running tomorrow
Presumably that’s sorted out your receiver now?
1 Like
Well swopped them round and still nothing, starting to wonder if it is me or I have a faulty stack.
Really starting to run out of options and things to try.

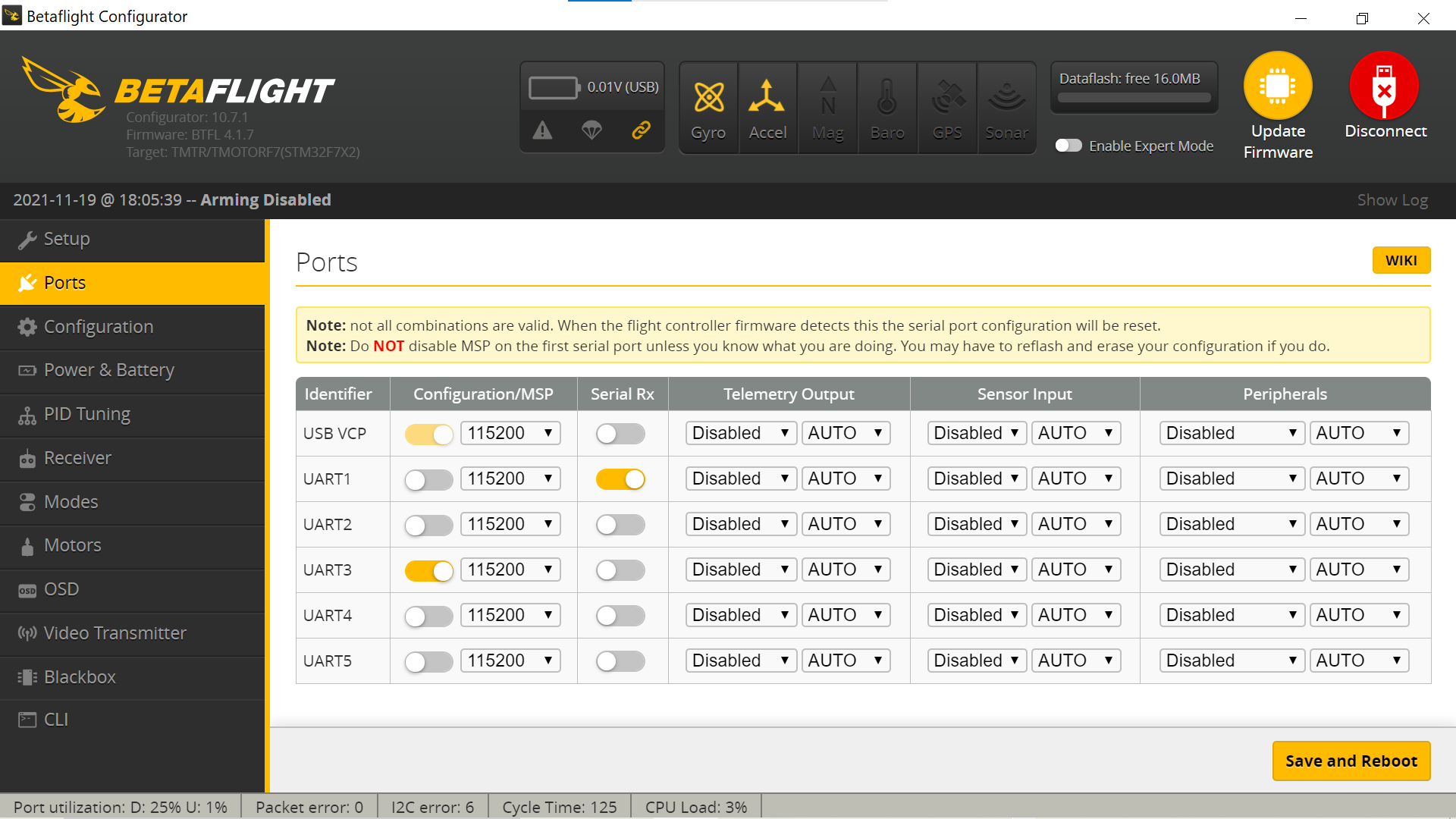

When you changed the uarts in the ports tab did you save before exiting?
If the wiring is correct, uart 1 is set to serial rx and you have sbus selected as the receiver type in the configuration tab it should be working So now thats all setup correctly are you still not getting stick movement in your receiver tab when the lipo is connected?
@BigDog If I had the knowledge of your quad and of BetaFlight I would try to help but sorry I don’t
If I could I would set up a few hours one night, and log in to your PC with Team Viewer and maybe between us it could easily be sorted
Maybe one of the others could offer this option?
Just asking, as technical support is difficult to translate across! and is far easier if the person that has the skills also has the control of the PC
Just saying
1 Like
Thats a great idea Wayne
I can’t do it now but I might be able to do that this evening. Or failing that we are going to be in Milton Keynes for a meet tomorrow if you can make it @BigDog ?
1 Like
One thing I’m wondering is with the wiring around the wrong way originally, did putting 10V on the Sbus line blow the receiver in the Vista?
