General 3D printing chit chat

3D Printing
241

Thank fuck, it’s bad enough watching repeats on TV. I don’t want to be watching them on Wayne’s printer too.

242

Right here’s an educated guess on the files for this, I’ll probably be wrong or near maybe, so
Some one designs these 3D prints on a computer down to millimetre size, then is that design converted into a file / program, in turn when the program is loaded to your pc, it does an exact copy of the original 3D design ? Close or miles off :face_with_monocle:

243

Not a million miles away.

244
  1. CAD 3D model produced
  2. Saved as .STL file (StereoLithography)
  3. Put through a “Slicer” program, which produces the route of the print head, and where the filament is laid down and at what speed/thickness etc.
  4. Saved as “G” code
  5. Sent to 3D printer which then follows the “G” code, much like a CNC machine (which is what it is really, just additive not subtractive).
  6. Produces 3D model.
2 Likes
245

@Kirky
A snippet of the code

G1 F2700 E1669.01886
G0 F9000 X121.57 Y127.88
G1 F1363.6 X121.57 Y129.999 E1669.10005
G1 F2700 E1664.10005
G0 F9000 X121.57 Y130.88
G0 X119.03 Y130.88
G1 F2700 E1669.10005
G0 F9000 X119.03 Y129.999
G1 F1363.6 X119.03 Y127.88 E1669.18125
G1 F2700 E1664.18125
G0 F9000 X119.03 Y127.38
G0 X116.49 Y127.38
G1 F2700 E1669.18125
G0 F9000 X116.49 Y127.88
G1 F1363.6 X116.49 Y129.999 E1669.26244
G0 F9000 X116.49 Y130.88
G0 X113.742 Y130.408
G0 X113.47 Y127.88
;TYPE:WALL-INNER
G1 F1176.5 X113.738 Y127.448 E1669.28502
G1 F1165 X114.049 Y127.185 E1669.30329
G1 X113.59 Y127.09 E1669.32431
G1 F1428.6 X113.38 Y127.09 E1669.33199
G1 X113.38 Y127.3 E1669.33967
G1 F1176.5 X113.47 Y127.88 E1669.36574
G0 F9000 X113.64 Y131.38
G0 X113.034 Y131.65
G1 F1500 X135.25 Y131.65 E1670.13962

246

Ooooo, hope he got a smooth wall :laughing:

247

Its a Sunday Night Live print show :joy:

1 Like
248

Video seems to be running at 2fps. :stuck_out_tongue:

249

Fixed :wink:

250

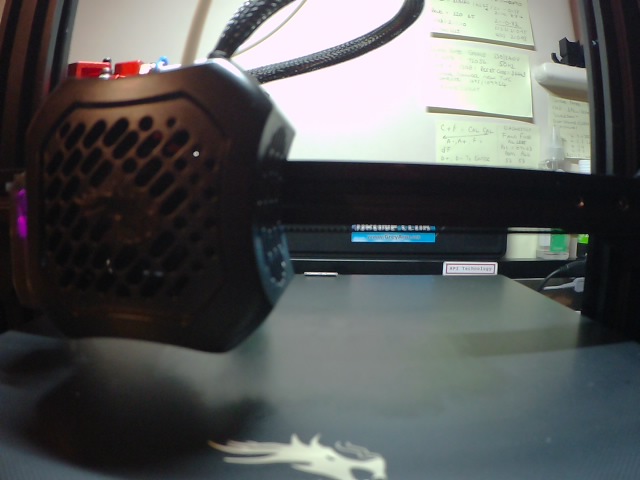

Evening, lcd stand what for :face_with_monocle:

251

Liquid Crystal Display :man_shrugging:t3:

252

Love it, I knew that, anyone in particular :smiley:

253

Check the live feed. its a 16x2 LCD screen

1 Like
254

I see your hand move something, now it’s gone :man_shrugging:t2:

Yep I just see it, thankyou :white_check_mark:

255

Is that another add on for your printer.

256

No, it is for a temperature monitor I made a couple of years ago with an Arduino nano and an MCP9808 temp sensor

257

Forgot to Post the update :wink: with my new very accurate desk thermometer

As you can see the kids and other half have come home and put the heating on full wack :scream::scream::scream:

image4032×3024 2.2 MB

258

It’s a bit tatoes out there today :cold_face:

259

For hot-desking? :wink:

260

I have been running this firmware for a week now, impressed :+1:

Professional Firmware for the Creality Ender 3 V2/S1 Printers

image622×502 70 KB

1 Like
